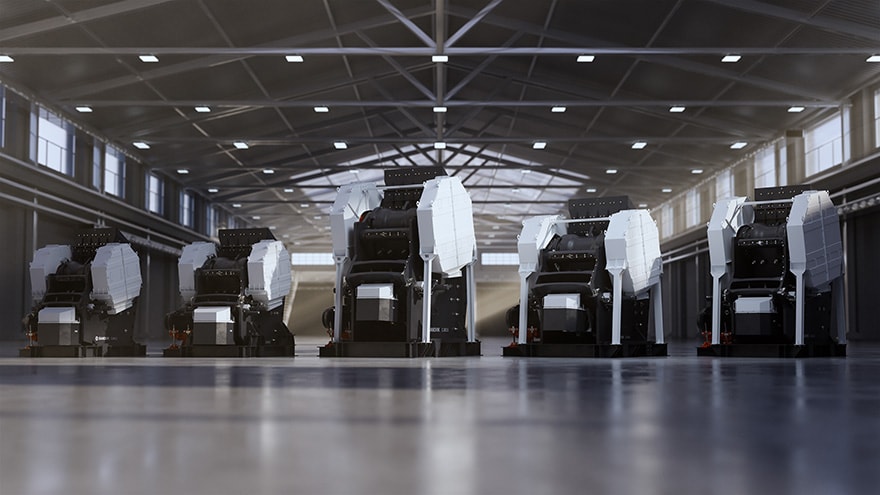

Better crushing starts here

From the early crushers of 1897 to today’s powerful jaw crushers, Sandvik has continously innovated and built upon an engineering legacy of uncompromising safety, reliability and performance.

Now we’re taking another exciting step towards better crushing—with a new generation of Sandvik jaw crushers, integrating the latest features and bringing even higher Sandvik-grade performance to your crushing operation.

Five reasons for choosing Sandvik jaw crushers

Now more Sandvik than ever

Sandvik jaw crushers now include hydraulic wedge setting with synchronized retraction arrangement for easy and safe crusher adjustment, high energy efficiency main motor, upgraded guarding and clear user-friendly documentation—integrating even more of the safety, performance and sustainability you expect from Sandvik solutions.

Tough crushing made easier

Sandvik jaw crushers come complete and ready for plug and play installation and integration, minimizing delays to safe productivity and profitability. A welded main frame, material quality improvements, optimized parts uniformity across the range and clear user-friendly documentation ensure the reliable crushing operation you expect from Sandvik.

Who you crush with counts

Your Sandvik jaw crusher is backed by the expertise and experience of an industry-leading partner with a crusher innovation legacy going back more than a century. And that has the global installed base and service network to reliably deliver support, solutions and troubleshooting wherever your operation is.

A safer choice of crusher

Sandvik jaw crushers now come with the ability for hydraulic wedge setting and retraction adjustments, reducing operator exposure to unnecessary risk. Combined with the advanced safety features shared by all Sandvik solutions, our new jaw crushers are as safety-first and foremost as they’ve always been.

Better control of reliable crushing

The ACS-j system simplifies monitoring and control of crusher hydraulic settings, and eccentric shaft bearing temperature. The information is accessible through a user-friendly web interface and provides you with easy oversight and control of component and crusher metrics, helping you maintain optimal crushing performance and availability through easy troubleshooting.

Advantages

Hydraulic wedge setting with synchronized retraction arrangement for fast, easy and safe adjustment during operation.
High energy efficiency main motor ensures an optimal combination of high power, energy efficiency, reduced operational costs and lower carbon footprint.
Compact plug-and-play solution means you’ll be up and running in the shortest possible time with the smallest possible footprint, while ensuring reliable productivity and availability.
Clear user-friendly documentation for optimal safety, operation and service
The latest ACS-j system makes performance and condition monitoring of key metrics simpler through a user-friendly web interface.
Safety-engineered guarding ensures more coverage and complete equipment and personnel protection.
Uniform engineering design for simpler parts replacement and seamless interoperability with all Sandvik solutions
All crushers come with a 3 years standard warranty.

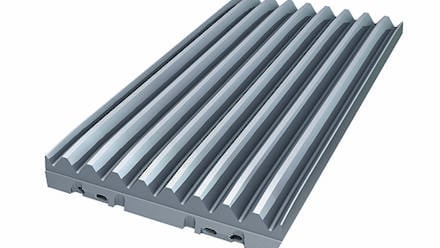

Jaw plates for all types of feed

Our patterns include Wide Teeth (WT), Corrugated (C), Coarse Corrugated (CC) and Heavy Duty (HD).

Our latest generation of CC and HD jaw plates are also available with a 1-piece chamber design and cast-in, strategically placed carbide inserts that dramatically improve resistance to abrasive wear, especially in high impact and high load zones. With these new plates, we are taking durability, safety, and total cost of ownership to the next level*.

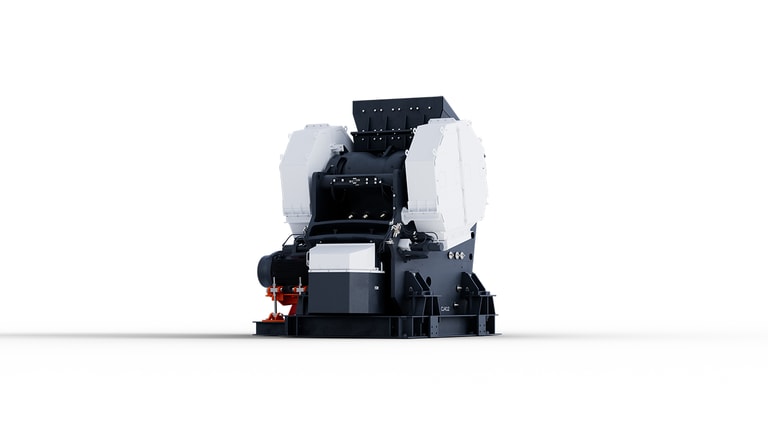

*Currently only available together with the CJ412 and CJ615 crusher models.

M1 is the standard alloy, offering high resistance to shock and impact. It also work well with hard rock. Our M9 alloy offer high resistance to abrasive rock, but have lower resistance to shock and impact.

The optimal jaw plate selection can be determined based on the rock/ore type characteristics (WI, AI) and the feed characteristics (friction, gradation).

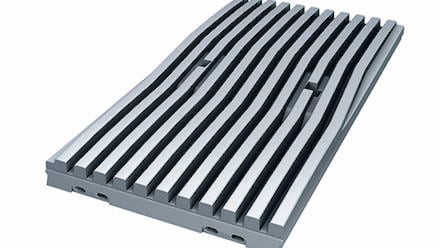

Wide teeth (WT)

For feed with a lot of fines; good wear resistance; can be used on both fixed and moving sides.

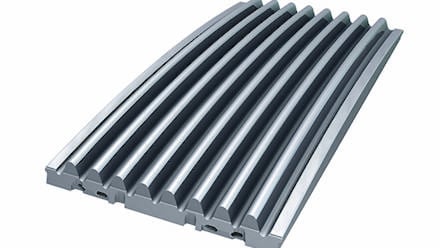

Corrugated (C)

Suitable for less abrasive material; good for small CSS settings; good top-size control

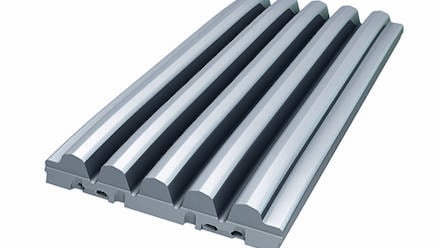

Coarse corrugated (CC)

For abrasive material and feed with a lot of fines; used for large CSS settings; good top-size control.

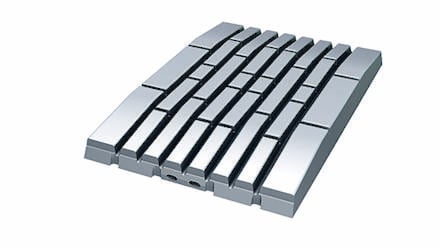

Heavy duty (HD)

For very abrasive material; less top-size control. Can be combined with a CC moving plate.
