Stationary VSI impact crushers
CV228
- Max. feed size
- 55.0 mm (2.2 in.)
- Capacity
- 271 - 444 tph
- Motor power
- 370 kW

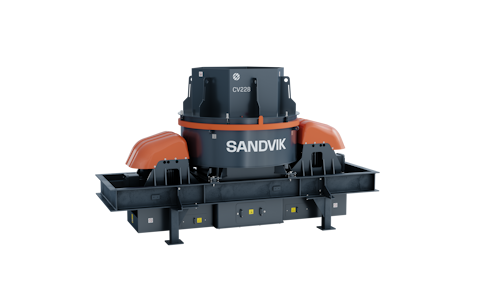

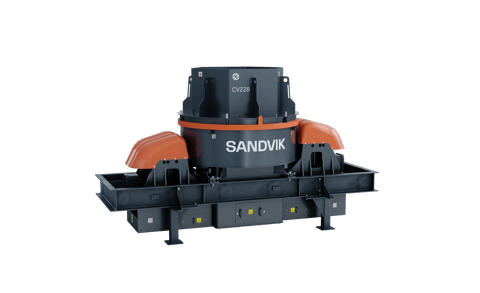

Sandvik CV228 VSI impact crusher is manufactured for tertiary and quaternary applications.
Features
-
Reduced operational cost per tonne,
maximizing your return on investment
-
Quick and easy replacement of wear parts,
which keeps the equipment productive with minimal downtime
-
Consistent,
easily-controlled product grading
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Max. feed size
- 55.0 mm (2.2 in.)
- Capacity
- 271 - 444 tph
- Motor power
- 370 kW
- Length
- 4.35 m (171.00 in.)
- Width
- 2.23 m (88.00 in.)
- Height
- 3.06 m (120.00 in.)
- Weight
- 14,826 kg (32,686 lb)
- Rotor rpm range 50 Hz
- 1,401 - 1,677
- Rotor rpm range 60 Hz
- 1,408 - 1,666
Additional product information
The crucher can handle anything from hard and abrasive rocks to soft, moist and even sticky materials. It's an efficient, versatile piece of equipment, designed to perform well with the most difficult materials.
Sandvik CV228 VSI can be used for a variety of applications, from quality aggregate production for concrete products, road construction and Dam production, to Mining industries where is's used as a pre-grinder to mills resulting in huge power savings.
It gives excellent product shape and are also ideal for crushing minerals, slag, clinker and glass.
-
