Stationary VSI impact crushers
CV217
- Max. feed size
- 50.0 mm (2.2 in.)
- Capacity
- 122 - 192 tph
- Motor power
- 185 kW

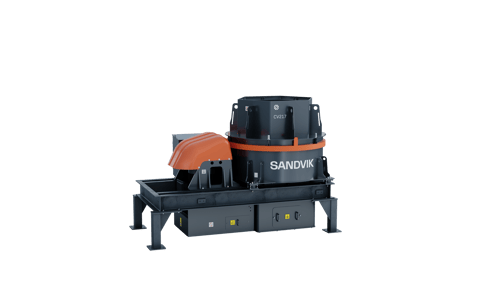

Sandvik CV217 VSI impact crusher is designed for tertiary and quaternary applications.
Features
-
Reduced operational cost per tonne,
maximizing your return on investment
-
Quick and easy replacement of wear parts,
which keeps the equipment productive with minimal downtime
-
Consistent,
easily-controlled product grading
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Max. feed size
- 50.0 mm (2.2 in.)
- Capacity
- 122 - 192 tph
- Motor power
- 185 kW
- Length
- 4.35 m (171.00 in.)
- Width
- 2.16 m (85.00 in.)
- Height
- 2.55 m (100.00 in.)
- Weight
- 9,500 kg (20,944 lb)
- Rotor rpm range 50 Hz
- 1,391 - 1,973
- Rotor rpm range 60 Hz
- 1,487 - 1,965
This crusher is also available on the following mobile units:
UV210
Sandvik UV210 is a tertiary crushing unit fully assembled on a single trailer frame. We have designed this unit to be highly productive, versatile and mobile to meet your needs. It features a Sandvik CV217 VSI crusher and efficient three deck vibrating screen which is capable of producing 1 - 3 products of premium shape at a low cost per tonne.UV320E
Sandvik UV320E is an integrated vertical shaft impact (VSI) crusher and three-way split screener on a wheeled chassis. Powered by electricity we have designed this unit for the production of premium shaped aggregates for the concrete and asphalt industries at a low cost per tonne.
Additional product information
The crusher can handle anything from hard and abrasive rocks to soft, moist and even sticky materials.
Sandvik CV217 VSI can be used for a variety of applications, from quality aggregate production for concrete products, road construction and Dam production, to Mining industries where is's used as a pre-grinder to mills resulting in huge power savings.
It gives excellent product shape and are also ideal for crushing minerals, slag, clinker and glass.
-
