Stationary VSI impact crushers
CV215
- Max. feed size
- 40.0 mm (1.6 in.)
- Capacity
- 10 - 50 tph
- Motor power
- 55 kW

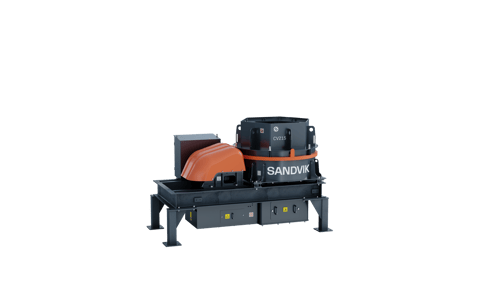

Sandvik CV215 VSI impact crusher is designed for tertiary and quaternary applications.
-
Reduced operational cost per tonne,
maximizing your return on investment
-
Quick and easy replacement of wear parts,
which keeps the equipment productive with minimal downtime
-
Consistent,
easily-controlled product grading
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Max. feed size
- 40.0 mm (1.6 in.)
- Capacity
- 10 - 50 tph
- Motor power
- 55 kW
- Length
- 4.35 m (171.00 in.)
- Width
- 2.16 m (85.00 in.)
- Height
- 2.00 m (79.00 in.)
- Weight
- 6,000 kg (13,228 lb)
- Rotor rpm range 50 Hz
- 1,568 - 2,101
- Rotor rpm range 60 Hz
- 1,576 - 2,112
Additional product information
The crusher can handle anything from hard and abrasive rocks to soft, moist and even sticky materials.
Sandvik CV215 VSI can be used for a variety of applications, from quality aggregate production for concrete products, road construction and Dam production, to Mining industries where is's used as a pre-grinder to mills resulting in huge power savings.
It gives excellent product shape and are also ideal for crushing minerals, slag, clinker and glass.
-
