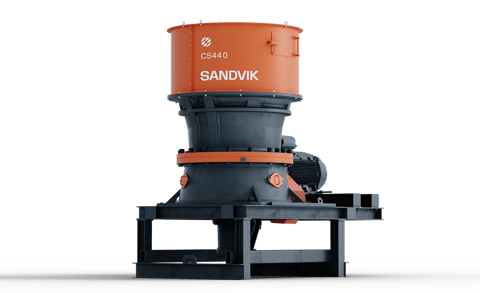

Sandvik CS440 Cone Crusher With A Constant Intake Opening

Sandvik CS440 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

Hydroset™ system

provides safety and setting-adjustment functions
ASRi™

automatically adapts crusher to feed conditions
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance
Excellent in secondary applications

due to the large feed opening
Easy to maintain

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Nominal capacity: 191 - 510 mtph (210 - 562 stph)
Max. feed size: 500.0 mm (19.7 in.)
Motor power: 220 kW (295 hp)
Closed side setting (CSS) range: 25.0 - 57.0 mm (1.0 - 2.2 in.)
Eccentric throw range: 20.0 - 36.0 mm (0.8 - 1.4 in.)
Mantles (inner liners): A, B
Concaves (outer liners): EC, C, MC
No of chambers: 3
Weight: 21,637 kg (47,699 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

Three standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by selection of crushing chamber and eccentric throw:

EC = Extra coarse
C = Coarse
MC = Medium coarse

This crusher is also available on the following mobile units:

US440i

Sandvik US440i is the ultimate heavy duty cone crusher capable of accepting a feed size of up to 500 mm (19.7 in.). We have designed this unit to suit the specific needs of large mine or quarry operators, but due to being equipped with our market-leading Sandvik CS440 cone crusher, it can be used for a much wider range of applications.

US440i Mobile unit

US440E

Sandvik US440E mobile cone crusher is a highly efficient electrically powered, track-mounted complete process machine with a cone crusher and screen onboard. It has been designed to meet the demands of quarry operators, construction companies, mining companies or contractors working with highly abrasive materials, and it is the ideal solution for your secondary and tertiary applications.

US440E Mobile unit

Additional product information

This equipment is designed to be easy to maintain and service, allowing you to maximize your uptime and productivity, while the unibody mainframe gives Sandvik CS440 strength and durability.

The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels, ensuring it consistently produces excellent quality output.
