Stationary cone crushers 400-600 series
CS420
- Nominal capacity
- 70 - 172 mtph (77 - 190 stph)
- Max. feed size
- 267.0 mm (10.5 in.)
- Motor power
- 90 kW (121 hp)

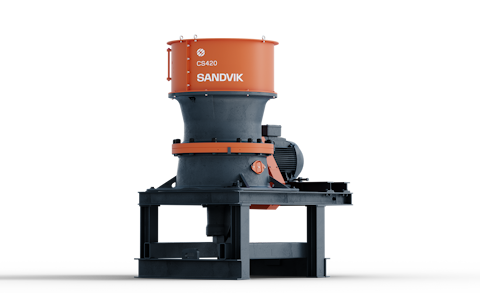

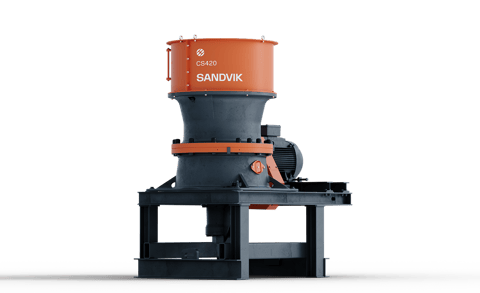

Sandvik CS420 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This equipment is suitable for a high-capacity secondary crushing application.
-
Hydroset™ system
provides safety and setting-adjustment functions
-
ASRi™
automatically adapts crusher to feed conditions
-
Unibody mainframe
ensures optimal strength and less maintenance
-
Lifting from above
minimizes risks and allows for safer maintenance
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Nominal capacity
- 70 - 172 mtph (77 - 190 stph)
- Max. feed size
- 267.0 mm (10.5 in.)
- Motor power
- 90 kW (121 hp)
- Closed side setting (CSS) range
- 13.0 - 35.0 mm (0.5 - 1.4 in.)
- Eccentric throw range
- 16.0 - 25.0 mm (0.6 - 1.0 in.)
- Mantles (inner liners)
- A, B
- Concaves (outer liners)
- EC, C
- No of chambers
- 2
- Weight
- 7,188 kg (15,850 lb)
- Automation (ASRi)
- Optional
- Lubrication tank
- Standard
- Offline lubrication filtration unit
- Optional
Two standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by selection of crushing chamber and eccentric throw:
- EC = Extra coarse
- C = Coarse
Additional product information
Sandvik CS420 cone crusher is characterized by the large intake capability and the high capacity in relation to size. The adjustable throw give the equipment real versatility, allowing it to handle a wide range of applications efficiently and effectively.
The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels, ensuring it consistently produces excellent quality output.
The equipment is extremely reliable, and designed to be easily serviced and maintained. This means Sandvik CS420 can be consistently productive, with minimal downtime.
-
