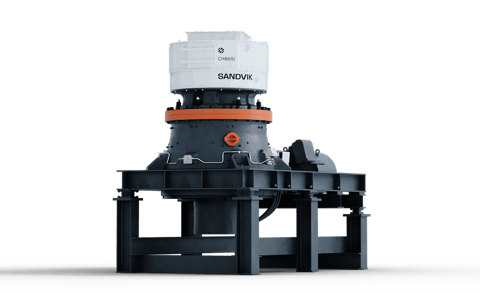

CH865i

Sandvik CH865i is a high capacity technologically advanced, mid-range cone crushers designed for crushing applications in mines or large sized quarries.

Hydroset™ system

provides safety and setting-adjustment functions
Automation & Connectivity System (ACS)

automatically adapts the crusher to varying feed conditions ensuring maximum 24/7 performance
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance
The electric dump valve system

protects your crusher against unwanted pressure peaks greatly improving its performance and reliability

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Brochure - 800i connected cone crusher with ACS-c 5

Nominal capacity: 155 - 517 mtph (171 - 570 stph)
Max. feed size: 123 mm (5 in.)
Motor power: 500 kW (670 hp)
Closed side setting (CSS) range: 10 - 44 mm (0 - 2 in.)
Eccentric throw range: 30 - 70 mm (1 - 3 in.)
Mantles (inner liners): A, B, EF, OB
Concaves (outer liners): MF, F, EF, HR*
No of chambers: 4
Weight: 38,930 kg (85,826 lb)
Automation (ACS): Included
Electric dump valve: Included
Lubrication tank: Included
Tank instrument monitoring system: Included
Offline lubrication filtration unit: Included

*HR=High Reduction, Only available through aftermarket

Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw.

The chambers available are:

MF = Medium fine
F = Fine
EF = Extra fine

Additional product information

The crusher has a hydraulically supported main shaft which is supported at both ends. With a robust design, adjustable eccentric throw, a constant intake opening, they offer production flexibility and depending on crushing application, they perform up to 30% better compared to other crushers in their class.

With the Sandvik CH865i, the increased crushing force facilitates higher size reduction, resulting in a finer product size and less circulating load in closed circuits. It’s particularly beneficial for tertiary and pebble crushing applications.

It brings you a revolution in intelligent crushing. SAM by Sandvik gives you complete 24/7 access to data generated by your connected Sandvik crusher fleet. Make decisions based on facts, and clearly see areas where you can improve uptime and productivity. Get access to manuals and an e-commerce platform to easily and efficiently buy and reorder wear and spare parts. SAM by Sandvik lets you track & trace parts online to make maintenance planning simpler. No other crushers are better connected.

The CH865i comes with the new generation Automation and Connectivity System (ACS) as standard. The system continuously monitors and optimizes crusher performance and controls the complete lubrication system, increasing uptime and reliability. It can automatically adjust crusher settings to compensate for crushing chamber wear– ensuring consistent product size. Hydroset™ and the advanced dump valve automatically provide overload protection to let tramp iron or other uncrushable material pass through.
