Stationary cone crushers 800i-series
CH860i
- Nominal capacity
- 250 - 910 mtph (275 - 1,003 stph)
- Max. feed size
- 315 mm (12 in.)
- Motor power
- 500 kW (670 hp)

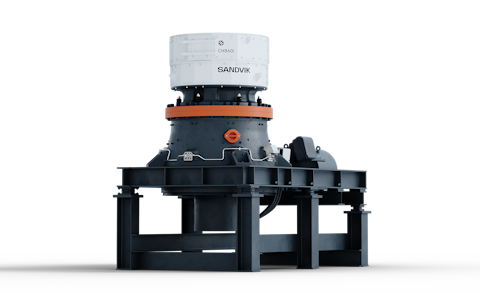

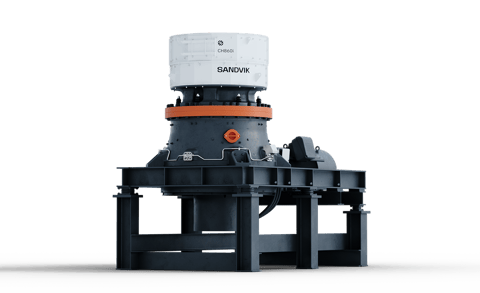

Sandvik CH860i is a high capacity technologically advanced, mid-range cone crushers designed for crushing applications in mines or large sized quarries.
-
Hydroset™ system
provides safety and setting-adjustment functions
-
Automation & Connectivity System (ACS)
automatically adapts the crusher to varying feed conditions ensuring maximum 24/7 performance
-
Unibody mainframe
ensures optimal strength and less maintenance
-
Lifting from above
minimizes risks and allows for safer maintenance
-
The electric dump valve system
protects your crusher against unwanted pressure peaks greatly improving its performance and reliability
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Nominal capacity
- 250 - 910 mtph (275 - 1,003 stph)
- Max. feed size
- 315 mm (12 in.)
- Motor power
- 500 kW (670 hp)
- Closed side setting (CSS) range
- 13 - 51 mm (1 - 2 in.)
- Eccentric throw range
- 30 - 70 mm (1 - 3 in.)
- Mantles (inner liners)
- A, B, FF
- Concaves (outer liners)
- EC, C, MC, M
- No of chambers
- 4
- Weight
- 39,710 kg (87,646 lb)
- Automation (ACS)
- Included
- Electric dump valve
- Included
- Lubrication tank
- Included
- Tank instrument monitoring system
- Included
- Offline lubrication filtration unit
- Included
Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw.
The chambers available are:
- EC = Extra coarse
- C = Coarse
- M = Medium
- MC = Medium coarse
Additional product information
The crusher has a hydraulically supported main shaft which is supported at both ends. With a robust design, adjustable eccentric throw, a constant intake opening, they offer production flexibility and depending on crushing application, they perform up to 30% better compared to other crushers in their class.
Sandvik CH860i is dedicated for high capacity secondary crushing thanks to its 500kW motor delivering higher power and more crushing force at maximum throw.
It brings you a revolution in intelligent crushing. SAM by Sandvik gives you complete 24/7 access to data generated by your connected Sandvik crusher fleet. Make decisions based on facts, and clearly see areas where you can improve uptime and productivity. Get access to manuals and an e-commerce platform to easily and efficiently buy and reorder wear and spare parts. SAM by Sandvik lets you track & trace parts online to make maintenance planning simpler. No other crushers are better connected.
The CH860i comes with the new generation Automation and Connectivity System (ACS) as standard. The system continuously monitors and optimizes crusher performance and controls the complete lubrication system, increasing uptime and reliability. It can automatically adjust crusher settings to compensate for crushing chamber wear– ensuring consistent product size. Hydroset™ and the advanced dump valve automatically provide overload protection to let tramp iron or other uncrushable material pass through.
-
