Stationary cone crushers 400-600 series
CH430
- Nominal capacity
- 26 - 215 mtph (29 - 237 stph)
- Max. feed size
- 214.0 mm (8.4 in.)
- Motor power
- 132 kW (177 hp)

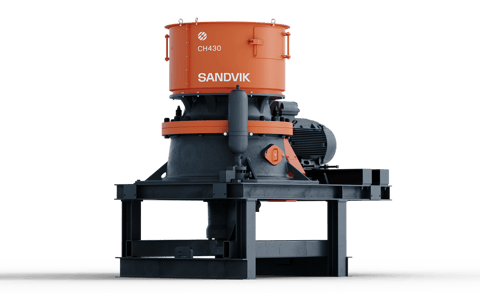

Sandvik CH430 is an advanced design with a small footprint and high capacity in relation to its size.
-
Hydroset™ system
provides safety and setting-adjustment functions
-
ASRi™
automatically adapts crusher to feed conditions
-
Unibody mainframe
ensures optimal strength and less maintenance
-
Lifting from above
minimizes risks and allows for safer maintenance
-
Constant liner profile design.
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Nominal capacity
- 26 - 215 mtph (29 - 237 stph)
- Max. feed size
- 214.0 mm (8.4 in.)
- Motor power
- 132 kW (177 hp)
- Closed side setting (CSS) range
- 4.0 - 41.0 mm (0.2 - 1.6 in.)
- Eccentric throw range
- 16.0 - 36.0 mm (0.6 - 1.4 in.)
- Mantles (inner liners)
- A, B, S, FF-B, EF, HC
- Concaves (outer liners)
- EC, C, MC, M, MF, F, EF
- No of chambers
- 7
- Weight
- 10,516 kg (23,181 lb)
- Automation (ASRi)
- Optional
- Lubrication tank
- Standard
- Offline lubrication filtration unit
- Optional
Former name: H3800 Cone crusher
Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by the selection of crushing chamber and eccentric throw.
The chambers available are:
- EC = Extra coarse
- C = Coarse
- MC = Medium coarse
- M = Medium
- MF = Medium fine
- F = Fine
- EF = Extra fine
This crusher is also available on the following mobile units:
QH332
Sandvik QH332 is a tracked, self-contained cone crusher designed for versatility, safety and high performance.UH320E
Sandvik UH320E is an integrated mobile cone crusher and triple deck screener all combined on one wheeled chassis. We have designed this unit to operate in open or closed circuits, or single stage in natural sand and gravel operations providing ultimate flexibility. It offers you superb functionality and can produce three calibrated fractions thanks to the market leading Sandvik CH430 cone crusher.UH311
Sandvik UH311 is a compact secondary and tertiary crusher fully assembled on a single trailer frame. Equipped with a four deck screen for accurate and efficient screening, combined with a highly productive Hydrocone crusher, we have designed this unit to provide complete versatility and high-end productivity at a low cost-per-tonne.UH316
Sandvik UH316 is a compact secondary and tertiary crusher fully assembled on a single trailer frame. The powerful combination of our efficient Sandvik SA1853 triple deck screen and a highly productive Sandvik Hydrocone crusher make this wheeled crushing unit a versatile performer across a broad range of applications.
Additional product information
This cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening.
A combination of chamber range, adjustable throw, and high motor power give the crusher a wide range of application combinations to suit different installations. This versatile crusher allows a number of crushing chambers, meaning that it can be matched to suit your specific needs.
Sandvik CH430 Cone crusher incorporates our sophisticated Hydrocone technique which enables you to run your crusher at maximum performance levels under changing feed conditions without overloading the crusher. The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels.
-
