Sandvik CH420 Cone Crusher With Hydraulically Supported Main Shaft

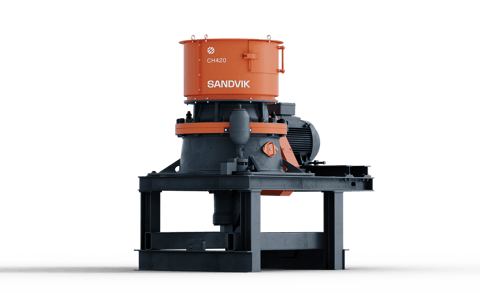

Sandvik CH420 cone crusher has a hydraulically supported main shaft that is supported at both ends.

Hydroset™ system

provides safety and setting-adjustment functions
ASRi™

automatically adapts crusher to feed conditions
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above,

which minimizes risks and allows for safer maintenance
Excellent versatility

due to a wide range of chambers fitted with different feed acceptance

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Nominal capacity: 23 - 135 mtph (25 - 149 stph)
Max. feed size: 155.0 mm (6.1 in.)
Motor power: 90 kW (121 hp)
Closed side setting (CSS) range: 4.0 - 35.0 mm (0.2 - 1.4 in.)
Eccentric throw range: 13.0 - 28.0 mm (0.5 - 1.1 in.)
Mantles (inner liners): A, B, FlexiFeed, B, EF, HC
Concaves (outer liners): EC, C, M, MF, F, EF
No of chambers: 6
Weight: 6,130 kg (13,515 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by the selection of crushing chamber and eccentric throw.

The chambers available are:

EC = Extra coarse
C = Coarse
M = Medium
MF = Medium fine
F = Fine
EF = Extra fine

This crusher is also available on the following mobile unit:

UD211

Sandvik UD211 is an integrated and compact design operating as a two stage closed circuit crushing and screening unit. We have ensured it provides a high level of performance and productivity by utilizing the reliable CJ409 jaw and CH420 cone crusher, all on one mobile chassis.

Mobile unit UD211

Additional product information

The crusher has a robust design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a wide range of tasks, including high-capacity secondary application and high-reduction tertiary or pebble-crushing application

Sandvik CH420 cone crusher is of advanced design with a small footprint and high capacity in relation to size. It has high reduction efficiency and is engineered to give optimal product shape.

A combination of chamber range, adjustable throw, and high motor power give the crusher real versatility, ensuring that Sandvik CH420 remains highly productive, efficient, and capable.

The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels.
