Tracked screens
QA442 Doublescreen
- Equipment
- Sandvik 2 deck Doublescreen
- Screen size
- 6 x 1.5 m (20 x 5 ft)
- Capacity
- Up to 600 mtph (661 stph )

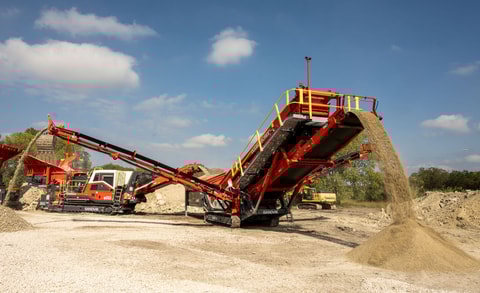

Sandvik QA442 mobile 2-deck sizing screen is the latest evolution of the Sandvik QA Series products and Doublescreen technology developed with uptime, productivity and lower cost of ownership in mind.
Features
-
World class Doublescreen technology
offering greater adjustability, increased accuracy and higher screening efficiency
-
Equal size screen decks
each providing 9m3 /100 sq. ft of screening area
-
Large volume hopper
complete with remote control hydraulic tipping grid
-
Independent screen angle adjustment
for greater screening accuracy
-
Versatile unit
capable of producing large volumes of high specification product
Product data
- Equipment
- Sandvik 2 deck Doublescreen
- Screen size
- 6 x 1.5 m (20 x 5 ft)
- Engine
- C4.4 97 kW (132 hp)*
- Capacity
- Up to 600 mtph (661 stph )
- Transport length
- 18.3 m (59.1 ft)
- Transport width
- 3.0 m (9.1 ft)
- Transport height
- 3.6 m (11.8 ft)
- Weight
- 33,000 kg (72,752 lb)
* Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
Additional product information
-
QA442
The QA442 is capable of producing large volumes of high specification products. Featuring two double-deck inline screen boxes with equal size screen decks each providing 9m3 /100 sq. ft of screening area.
The primary screen performs as a fines extractor, whilst the secondary screen performs as a grader. Two processes on one plant, offering exceptional flexibility, excellent separation, accurate grading and massive throughput.
This latest model has been designed with a number of new features for improved access, ease of operation and quicker set-up.
Sandvik QA442 offers a more sustainable solution with lower emissions, reduced fuel consumption, extended service intervals, optimized hydraulics and less operating noise.
Other models within this range of screens include Sandvik QA452.
-
Lower your operating cost and your carbon footprint
In our drive towards a more sustainable future and helping our customers to lower their operating costs, we have developed a hybrid drive option for our Q-Range of screens and scalpers. This electric plug-in solution allows you to choose between operating in electric-hydraulic or diesel-hydraulic mode, giving you the flexibility to select the energy source which best suits your requirements. This will enable you to lower your operating cost as well as your carbon footprint.
Available on Sandvik QA442e and QA452e models within our screening range and QE342e, QE442e and QE442e Free Flow in our scalper offering.
-
Additional advantages
- Designed for optimum fuel economy to lower your operating costs
- Up to 50% less hydraulic oil consumed over 10,000 hrs of machine usage, (subject to oil sampling)
- Wireless radio handset and two speed tracking for safe & efficient movement
- User friendly PLC control system with sequential start-stop for speed and ease of set-up
- Hybrid “e” drive option with electric plug-in lets you choose your most economical and efficient energy source
- My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
- Security+ extended warranty & service package for higher uptime and peace of mind.
Case stories
Sandvik QA442 offers an enhanced 2-deck Doublescreen solution
Sandvik Mobile Crushers and Screens is delighted to announce the launch of its new QA442. The latest evolution of the Sandvik QA Series products and Sandvik Doublescreen technology. The QA442 has been developed with sustainability, productivity, and lower cost of ownership in mind. A high performing processing solution, ideal for producing massive volumes of high specification products for the mineral, aggregate and recycling industries.

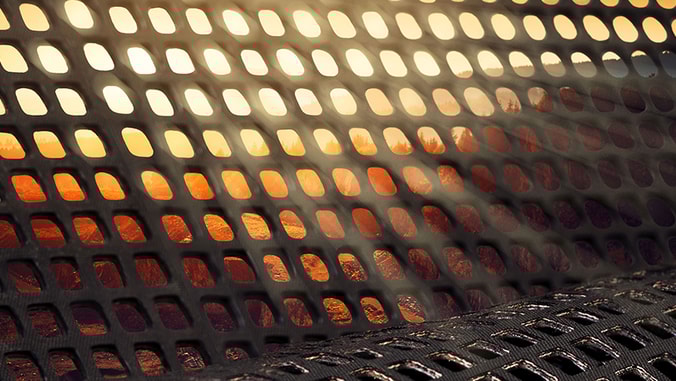

Sandvik Mobiles introduce new WX-Range of screen media combining durability & high accuracy
