Mobile screens

Mobile screens

Sandvik offer a wide range of screening solutions with the versatility to handle virtually every application with the utmost precision. There's often a fine line between what you can sell and what goes to waste. We understand the difference, which is why Sandvik offers a range of mobile screeners that can be matched to your specific needs.

Tracked screening solutions

Choose from a variety of tracked mobile screeners designed for optimal performance and flexibility. The Sandvik Doublescreen technology utilizes two independent, inline screenboxes. This results in a marked increase in throughput, control and screening efficiency compared to a traditional single box design. There's a robust, durable Sandvik mobile screener for the most specialized screening applications. When a single screen won't suffice, take your pick of two or three deck models that cover the full range of screening challenges.

We have developed a hybrid drive 'e' option with electric plug-in for our Q Range of screens. The hybrid drive retains all the benefits and mobility of the track mobile plant but with additional benefits such as lower operating costs, reduced engine servicing and refueling saving time and money as well as lower carbon footprint and improved operating conditions on site.

Model	Weight kg (lbs)	Screener size m (ft)	Capacity up to mtph (stph)	No. of products

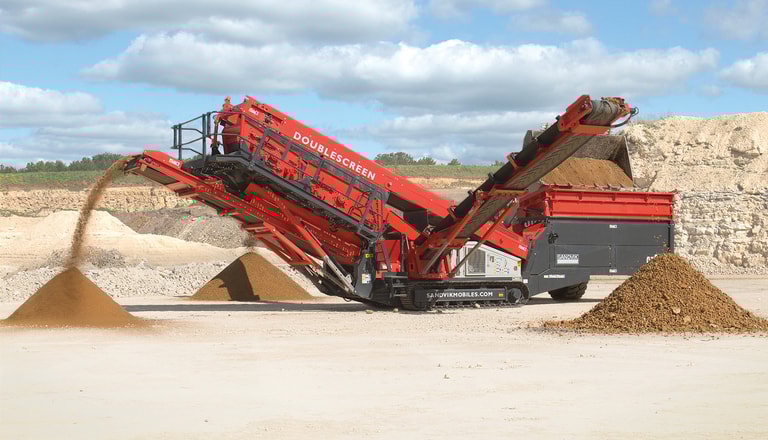

QA335	26,520 (58,467)	4 x 1.5 (13 x 5) double deck	400 (441)	3
QA442	33,000 (72,752)	6 x 1.5 (20 x 5) double deck	600 (661)	3
QA442e	32,962 (72,668)	6 x 1.5 (20 x 5) double deck	600 (661)	3

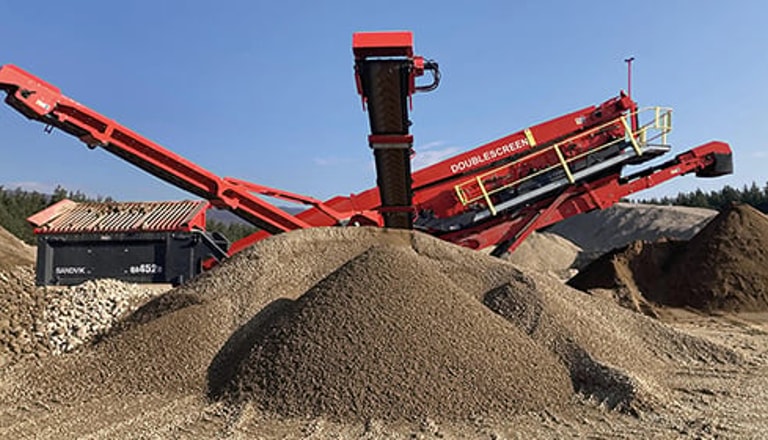

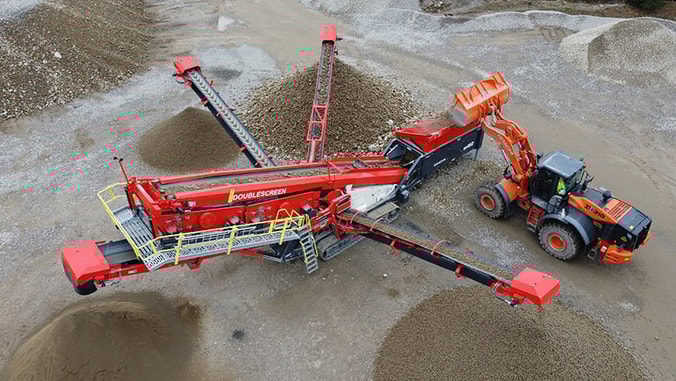

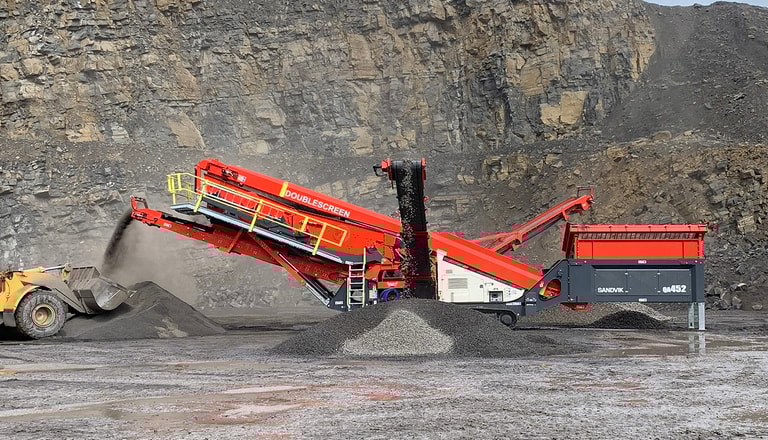

QA452	40,200 (88,625)	6 x 1.5 (20 x 5) triple deck	600 (661)	4
QA452e	41,260 (90,962)	6 x 1.5 (20 x 5) triple deck	600 (661)	4

Wheeled screening solutions

Our Sandvik wheeled range of screening units has been designed for maximum capacity in highly accurate screening operations. Powered by electricity they are designed for maximum efficiency with a high throughput.

Model	Weight kg (lbs)	Screen size m (ft)	Capacity up to mtph (stph)	No. of products

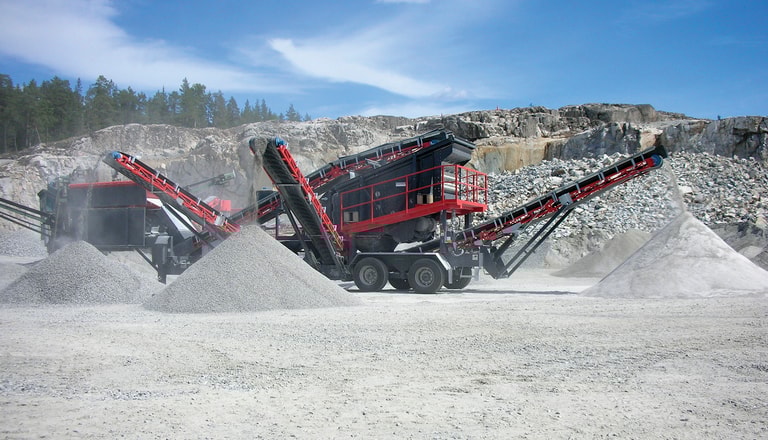

UF320E	33,000 (72,800)	6.5 (69.9)		4
UF373 *	29,943 (59,000)	6.09 x 1.82 (20' x 6')	720 (650)	2 - 3
UF473 *	30,617 (67,500)	6.09 x 2.43 (20' x 8')	800 (885)	2 - 4

Please note all weights and dimensions are for standard units only.

* Exclusive to North American only.

Downloads

Brochure - Mobiles Tracked Range (PDF document, 6.3 MB)

Brochure - Mobiles Heavy Range (PDF document, 4.9 MB)

Brochure - Mobiles Wheeled USA Range (PDF document, 29.4 MB)

We understand the screening challenges that you face on a day to day basis. Every site, every situation, every screening application has its own individual demands. Productivity and performance depend on how well you meet those demands.

When uncompromising separation accuracy is a key consideration, Sandvik quality and flexibility are the key to success. Our single-screen units are the ideal answer for recycling applications and contractors. For more complex screening demands, our patented Sandvik Doublescreen system – available in double or triple deck configurations – offers unsurpassed mobile screening capabilities. Uniquely aggressive vibration actions ensure high productivity, and convenient wraparound walkways allow for quick, easy maintenance. The wide range of options available with our mobile screens give you the ability to configure your system to suit a variety of screening applications including aggregates, recycling, and sand and gravel.

As with every Sandvik product, experience, insight and technology set our screening solutions apart from the crowd.
