Tracked scalpers

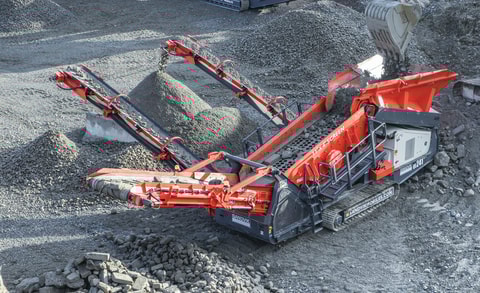

QE241 Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 3.35 x 1.24 (11 x 4 ft)
- Capacity
- 350 mtph (386 stph )
Sandvik QE241 is the most compact model in our heavy duty scalper range. It has been designed for the operator who requires a high performing, versatile unit with a smaller overall footprint that is also easy to transport.
Features
-
Biggest screen size
in its class 3.35 x 1.24 m (11 x 4 ft.)
-
Massive stockpiling capability
through integrated hydraulic conveyors
-
Compatible
for 2-way or 3-way split configurations
-
User-friendly PLC control system
with sequential start-stop for speed and ease of operation
-
Screen box jack-up facility
for easy access to bottom deck
Product data
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 3.35 x 1.24 (11 x 4 ft)
- Capacity
- 350 mtph (386 stph )
- Engine
- C2.8 / C3.4 55 kW (74 hp)*
- Transport length
- 10.0 m (32.8 ft)
- Transport width
- 2.5 m (8.2 ft)
- Transport height
- 3.1 m (10.2 ft)
- Weight
- 18,559 kg (40,915 lb )
* Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
Additional product information
-
QE241
Sandvik QE241 is compact, but makes no compromises in capability, and it is equipped with the biggest screen box in its class. This allows for increased overall productivity, and leads to improved efficiency. The screening capability is further improved with the banana-type bottom deck arrangement.
The machine is also built for ease of operation. Sandvik QE241 features a colour-coded control panel with large visual display, sequential auto start-stop system and a screen box jack-up facility for easy access. It's versatile, compact, and easy-to-use.

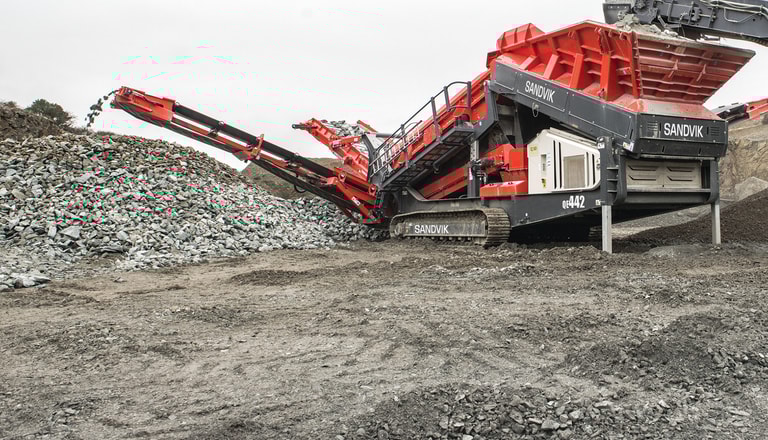

Other models within this range include the Sandvik QE141, QE342 and Sandvik QE442.
