Wheeled jaw crushers

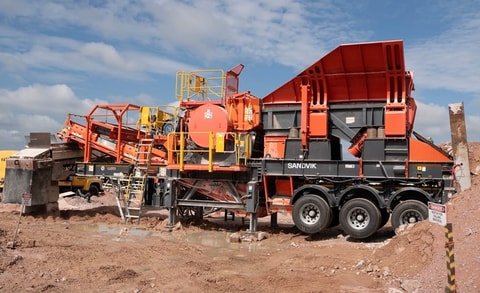

UJ313 Jaw crusher
- Equipment
- Sandvik CJ211 jaw
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (340 stph)
Sandvik UJ313 offers a primary crushing solution, ideal for the quarrying and recycling industries. Electrically powered for a more sustainable future, the UJ313 delivers optimal performance and eco-efficient rock processing.
Features
-
Electric drives
provide optimum running conditions at a lower cost
-
Feed hopper has a hydraulic self-locking mechanism
for quick and easy set up
-
Hydraulic machine set up, with onboard power pack
provides quick, easy and safe set up
-
A three-way diverter chute, before grizzly feeder bars
allows for onsite flexibility, maximizes capacities and sellable products
-
Motorized pulleys on the main and natural fines conveyors
extend oil changes to 50,000 hours
-
Large chamber opening of 1100 x 700 mm / 43" x 27"
allows unrestricted material flow into the chamber ensuring continuous production
-
CSS hydraulic adjust
ensures quick production changes and limits unnecessary downtime
-
Natural fines conveyor with large discharge height
offers greater stockpile capabilities
-
Level sensors at the jaw, main conveyor and natural fines conveyor
ensure the feeder control is based on actual stockpiling and jaw level
-
Service platforms on both sides of the crusher
allows for safe and stable access to the unit
Product data
- Equipment
- Sandvik CJ211 jaw
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (340 stph)
- Power
- 128 kW (172 hp)
- Transport length
- 13.7 m (44.1 ft)
- Transport width
- 3.0 m (9.1 ft)
- Transport height
- 4.0 m (13.1 ft)
- Weight
- 42,350 kg (93,366 lb)
These units are non CE-certified.
Please note all weights and dimensions are for standard units only.
Additional product information
UJ313
The UJ313 wheeled electric jaw crusher makes the shift to eco-efficient rock processing.
Benefit from a reduction in fuel costs, a decrease in carbon emissions, and a quieter operation, enhancing workplace safety and comfort. With its robust design and advanced electric drive system, the UJ313 delivers optimal performance.
With unparalleled sustainability, productivity, and reliability, this state-of-the-art unit is fully assembled on a single trailer frame and is mounted on a triple axle bogie, ensuring ease of transport and operational readiness.
At its core lies the Sandvik CJ211 jaw crusher, renowned for its exceptional reliability.
The UJ313 is engineered for high performance with minimal downtime, and is equipped with essential components including feeder motors, starters, and a frequency drive, all controlled by user-friendly systems.
Also available in the wheeled range of jaw crushing units are Sandvik UJ210 , UJ300 and UJ310 models.
Our wheeled jaw units
UJ310 Jaw crusher
- Equipment
- Sandvik CJ411 jaw, SW1253 H feeder
- Feed opening
- 1045 x 840 mm (41 x 33 in.)
- Max. feed size
- 750 mm (30 in.)
- Capacity
- Up to 325 mtph (358 stph)
UJ210 Jaw crusher
- Equipment
- Sandvik CJ409 jaw, SW1043H feeder
- Max. feed size
- 600 mm (24 in.)
- Capacity
- Up to 235 mtph (359 stph)
UJ300 Jaw crusher
- Equipment
- Sandvik CJ211 jaw, SW1043H feeder
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (342 stph)
