Wheeled jaw crushers
UJ300 Jaw crusher
- Equipment
- Sandvik CJ211 jaw, SW1043H feeder
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (342 stph)
![UJ300 wheeled jaw crusher](/siteassets/product-categories/uj300_002_1970px.jpg?width=480&height=293&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692786306&hmac=2f7c42b81bc06aa5cd6c20f99002388aebf8f5c784f02644b146abb4ce051868)
Sandvik UJ300 is a primary crushing unit designed for safe, simple and user-friendly operation. It offers high-end productivity at a low cost-per-tonne, ideal for a wide range of applications.
Features
-
Ideal solution
for your primary crushing needs
-
Grizzly feeder
with adjustable openings and by-pass chute for greater flexibility
-
Easy setting adjustment
for simple and efficient operation
-
Soft starting crusher
for trouble free operation
-
Low cost per tonne
due to electric operation
Product data
- Equipment
- Sandvik CJ211 jaw, SW1043H feeder
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (342 stph)
- Power
- 117 kW (156 hp)
- Transport length
- 12.6 m (41.3 ft)
- Transport width
- 2.6 m (8.3 ft)
- Transport height
- 4.1 m (13.5 ft)
- Weight
- 37,000 kg (81,571 lb)
These units are non CE-certified.
Please note all weights and dimensions are for standard units only.
Additional product information
-
UJ300
Sandvik UJ300 is equipped with the reliable and highly productive Sandvik CJ211 jaw crusher. You will benefit from smooth material flow and high reduction efficiency, as well as hydraulic wedge push button controls and an optimized feed chamber.
The equipment is designed for primary crushing, and features a grizzly feeder system with a wire cloth screening element beneath, to enable the removal of natural fines.
Also available in the wheeled range of jaw crushing units are Sandvik UJ210 and UJ310 models.
-
Additional advantages
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
- Security+ extended warranty & service package for higher uptime and peace of mind.
Case stories
![](/contentassets/2116d2c22b7b49d5a10a1c393ea47f4a/kz_uj300_003_880px.jpg?width=440&height=248&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1686658653&hmac=499199ca1f254436edcdbc850736f388121ba63654e226f094e57a761099d717)

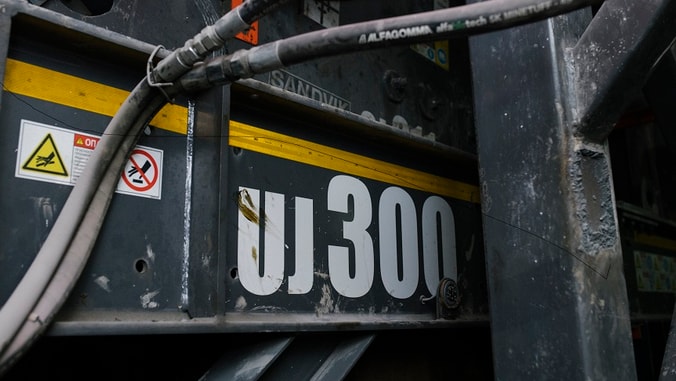

Wheels keep on rolling in for Kazakhmys Corporation in Kazakhstan
![](/siteassets/products/mobile-crushers-and-screens/images/uj300_1600px.jpg?width=440&height=248&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1695136550&hmac=05d9ef254166534c1dd9f5717405ec2e05ae4e7265d407d1ed1944f909d385c7)

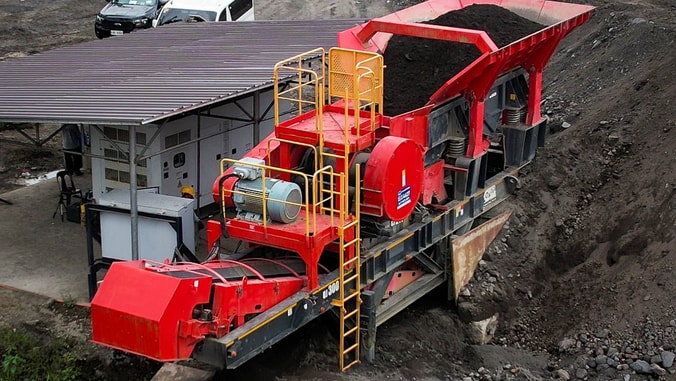

Wheeled and tracked duo prove just the job for Makapa Corporation in the Philippines
Our wheeled jaw units
![](/siteassets/products/mobile-crushers-and-screens/images/uj310_poland_001_1600px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1695136673&hmac=d85e2926f76e8bb94da56d1cde627c6f9fcbf946a73986dcf171441af3bdde6f)

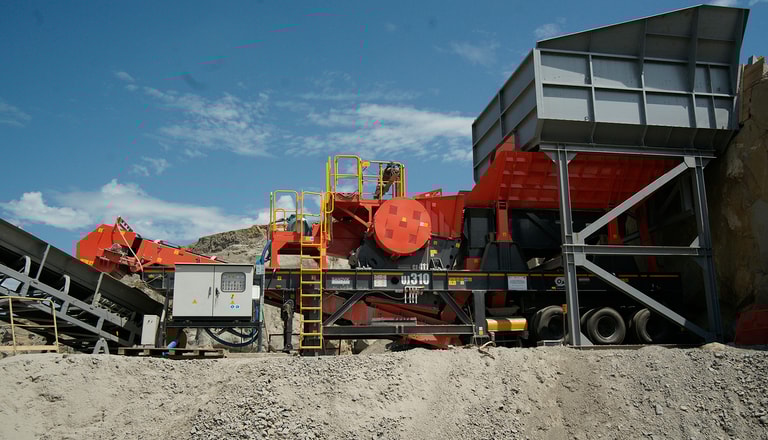

UJ310 Jaw crusher
- Equipment
- Sandvik CJ411 jaw, SW1253 H feeder
- Feed opening
- 1045 x 840 mm (41 x 33 in.)
- Max. feed size
- 750 mm (30 in.)
- Capacity
- Up to 325 mtph (358 stph)
![](/siteassets/products/mobile-crushers-and-screens/images/uj210-copy.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1695136317&hmac=b124e73ad110ef07c4b60c573af9cda67d42d805c82d0174aa8a3c3b3bd84a7a)

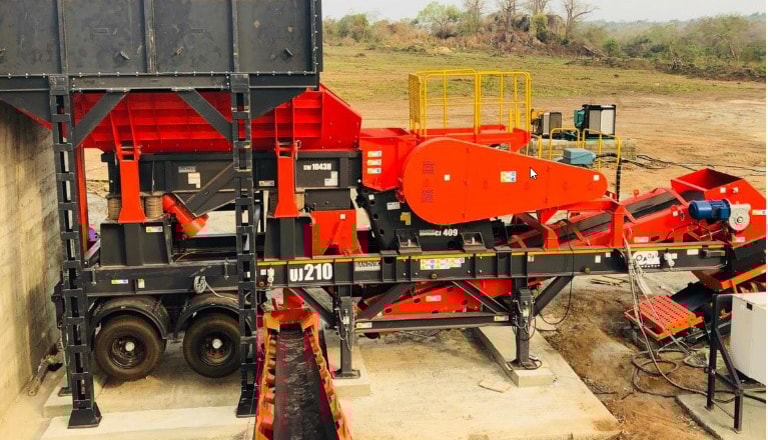

UJ210 Jaw crusher
- Equipment
- Sandvik CJ409 jaw, SW1043H feeder
- Max. feed size
- 600 mm (24 in.)
- Capacity
- Up to 235 mtph (359 stph)
