Wheeled jaw crushers

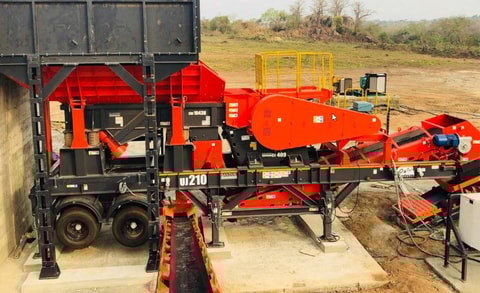

UJ210 Jaw crusher
- Equipment
- Sandvik CJ409 jaw, SW1043H feeder
- Feed opening
- 895 x 660 mm / 35 x 26 in.
- Max. feed size
- 600 mm (24 in.)
- Capacity
- Up to 235 mtph (359 stph)
Sandvik UJ210 offers a primary crushing solution fully assembled on a single trailer frame and mounted on a double axle bogie. Equipped with the reliable and highly productive Sandvik CJ409 jaw crusher, if offers outstanding efficiency and productivity.
Features
-
Ideal solution
for your primary crushing needs
-
Grizzly feeder
with adjustable openings and by-pass chute for greater flexibility
-
Easy setting adjustment
for simple and efficient operation
-
Soft starting crusher
for trouble free operation
-
Low cost per tonne
due to electric operation
Product data
- Equipment
- Sandvik CJ409 jaw, SW1043H feeder
- Feed opening
- 895 x 660 mm / 35 x 26 in.
- Max. feed size
- 600 mm (24 in.)
- Capacity
- Up to 235 mtph (359 stph)
- Power
- 235 kW (359 hp)
- Transport length
- 12.6 m (41.3 ft)
- Transport width
- 2.6 m (8.3 ft)
- Transport height
- 4.1 m (13.4 ft)
- Weight
- 36,500 kg (80,500 lb)
These units are non CE-certified.
Please note all weights and dimensions are for standard units only.
Additional product information
-
UJ210
With Sandvik UJ210 you will see a smooth material flow due to the ideal nip angle that is very efficient in reducing product size. The jaw also has a deep crushing chamber operated by single-toggle and the settings can be adjusted for simple and efficient operation.
All features on this machine have been designed with your needs in mind, including feeder motors, starters and a user-friendly control panel to give you high productivity and increased operator safety.

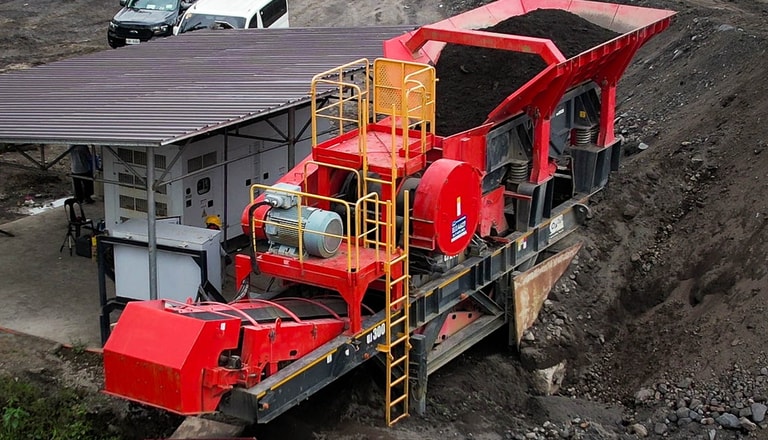

Also available in the wheeled range of jaw crushing units are Sandvik UJ300 and UJ310 models.
-
Additional advantages
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
- Security+ extended warranty & service package for higher uptime and peace of mind.
