Tracked cone crushers U-Range
UH640E Cone crusher
- Equipment
- Sandvik CH660 cone crusher
- Max. feed size
- 321 mm (13 in.)
- Capacity
- Up to 600 mtph (660 stph)

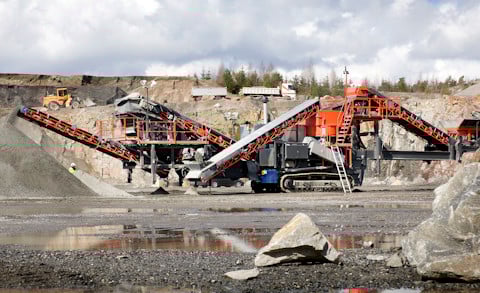

Sandvik UH640E is designed to be a flexible, highly productive secondary or tertiary cone crusher. This unique solution is capable of producing finished sized products due to the integral product screen and closed circuit operation
Features
-
Ideally suited to produce
high quality end product
-
Advanced process automation
to ensure ease of operation
-
Pre-separation
before the cone crusher to maximise production
-
Superb production capabilities
driven by your needs
-
Electric plug-in option
allows you choose your preferred energy source, diesel mode or electric mode
-
Easily accessed
for service and maintenance
Product data
- Equipment
- Sandvik CH660 cone crusher
- Max. feed size
- 321 mm (13 in.)
- Capacity
- Up to 600 mtph (660 stph)
- Power
- TAD 1642 GE 670 kVA
- Transport length Part 1
- 15.5 m (51.0 ft)
- Transport length Part 2
- 4.5 m (14.9 ft)
- Transport width Part 1
- 3.5 m (11.5 ft)
- Transport width Part 2
- 3.1 m (10.0 ft)
- Transport height Part 1
- 4.03 m (13.20 ft)
- Transport height Part 2
- 3.10 m (10.00 ft)
- Weight Part 1
- 64,700 kg (142,640 lb)
- Weight Part 2
- 13,000 kg (28,660 lb)
Please note all weights and dimensions are for standard units only.
Former Name: CM6800 Mobile cone crusher
Additional product information
-
UH640E
Sandvik UH640E can maximize your production with the help of a pre-separation facility. This means the material is already separated, before moving on to the on-board, class-leading Sandvik CH660 cone crusher.
It is self-propelled on crawlers and all equipment onboard is electric-powered, either by the onboard genset or via an external power supply. The low emissions from this mean that whilst productivity is high, the environmental impact is low.
With Sandvik UH640E you will also benefit from a dual interlocking and intelligence system that is integrated with ASRi (automatic setting regulation system) which gives you optimal performance and minimal downtime. With the vast choice of different mantles and settings, Sandvik UH640 is ideal for a wide range of applications.

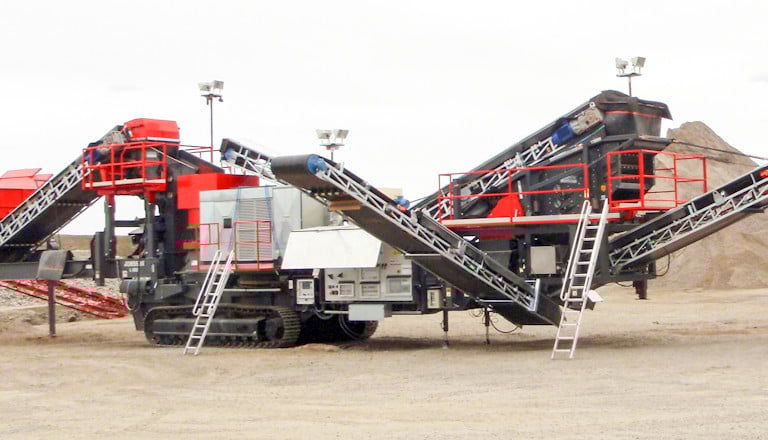

Other models within this range of cones include Sandvik UH440E and US440E.
-
Additional advantages
- Low emissions and low cost per tonne due to flexible operation through electrical mains or onboard diesel generator
- Security+ extended warranty & service package for higher uptime and peace of mind.
