Wheeled cone units
UH316 Cone crusher
- Equipment
- Sandvik CH430 cone, SA1853 triple deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 250 mtph
![](/siteassets/products/mobile-crushers-and-screens/images/uh312_1600px.jpg?width=480&height=293&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1695137052&hmac=b3d80ab41f7237e811305cc243a2d026c5e62aed3a4d6f92ae934aaef16c82cb)

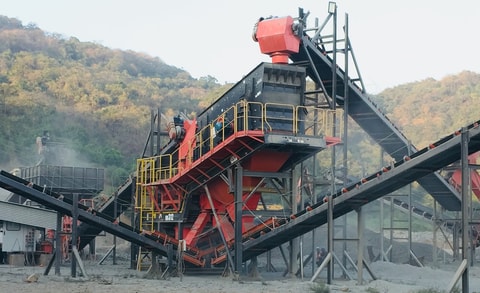

Sandvik UH316 is a compact wheeled secondary and tertiary crusher fully assembled on a single trailer frame. The powerful combination of our efficient Sandvik SA1853 triple deck screen and a highly productive Sandvik Hydrocone crusher make this wheeled crushing unit a versatile performer across a broad range of applications.
Features
-
Ideal for secondary and tertiary crushing
-
Hydraulic cone Hydroset™ setting (CSS)
and overload protection for maximum uptime
-
Highly efficient and accurate screening capability
-
Easy access
for service and maintenance
-
Low cost per tonne
due to electric operation
Product data
- Equipment
- Sandvik CH430 cone, SA1853 triple deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 250 mtph
- Power
- 160 kW (213 hp)
- Transport length
- 12.3 m (40.4 ft)
- Transport width
- 2.8 m (9.2 ft)
- Transport height
- 5.0 m (16.5 ft)
- Weight
- 35,000 kg (77,161 lb)
Additional product information
-
UH316
Sandvik UH316 is a reduction solution in the most demanding of applications. The advanced Sandvik Hydrocone crusher is designed to provide exceptional flexibility in both materials and processing, with a choice of a variety of crushing chambers and throws, as well as three different feed options. The thicker side plates and large mechanism provided with the Sandvik SA1853 screen makes Sandvik UH316 ideal for providing primary crushed material to the screen first. When it comes to versatility, this multipurpose wheeled unit has the ability to produce up to four products, to meet the most ambitious requirements. The compact size makes it a perfect fit for mobile applications.
Operator efficiency and safety are paramount in all Sandvik products and Sandvik UH316 is no exception. User-friendly features such quick set-up times, hydraulically controlled settings, and easy ground access are sure to boost productivity. An array of safety features, from crusher-mounted safety guards to multiple emergency stop buttons, provide added peace of mind. Tough, steel plate construction and easy access for service maintenance make our wheeled crushing units dependable, long-life performers.
Also available in the wheeled cone range is Sandvik UH311, UH312, UH412 and US316.
-
Additional advantages
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
Our wheeled cone units
![UH412 wheeled cone crusher](/globalassets/uh412_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627554&hmac=3e8332a4ab44683463a9f6d34ab72a75852fd34345ee9be4a2cdfe00f9bc45b4)
UH412 Cone crusher
- Equipment
- Sandvik CH440 cone, SA2164 four deck screen
- Max. feed size
- 215 mm (9 in.)
- Capacity
- Up to 300 mtph (330 stph)
![UH312 wheeled cone crusher](/globalassets/uh312_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627042&hmac=4457d69e7df845071ed0331d51d7d0dcbdd878252537d297d283afeff512c93f)
UH312 Cone crusher
- Equipment
- Sandvik CH440 cone, SA1854 four deck screen
- Max. feed size
- 215 mm (9 in.)
- Capacity
- Up to 300 mtph (330 stph)
![UH311 wheeled cone crusher](/globalassets/uh310_3_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627017&hmac=e2bbc624f3d85f1032fc0ab95adc242668753b8e094d3682cebd31b5392aa92b)
UH311 Cone crusher
- Equipment
- Sandvik CH430 cone, SA1854 four deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 200 mtph (220 stph)
![US316 cone crusher](/globalassets/us316_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627370&hmac=43e046187ed97336c832ba82d6758c98599e02a7be29b02182813961428da467)
US316 Cone crusher
- Equipment
- Sandvik CS430 cone, SA1853 triple deck screen
- Max. feed size
- 360 mm (14 in.)
- Capacity
- Up to 325 mtph (358 stph)
