Wheeled cone units
UH311 Cone crusher
- Equipment
- Sandvik CH430 cone, SA1854 four deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 200 mtph (220 stph)

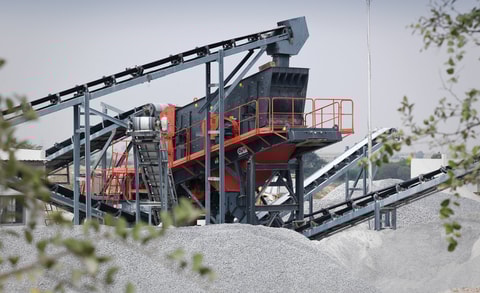

![UH311 wheeled cone crusher](/globalassets/uh310_3_1920px.jpg?width=480&height=293&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627017&hmac=560d993ec1e86ccfb0dbe2e0040fd0c5d16f654ead532c1bd5e262231c9a6292)
Sandvik UH311 is a compact wheeled secondary and tertiary crusher fully assembled on a single trailer frame. Equipped with a four deck screen for accurate and efficient screening, combined with a highly productive Hydrocone crusher, we have designed this unit to provide complete versatility and high-end productivity at a low cost-per-tonne.
Features
-
Ideal for secondary and tertiary crushing
-
Hydraulic cone Hydroset™ setting (CSS)
and overload protection for maximum uptime
-
Highly efficient and accurate screening capability
-
Easy access
for service and maintenance
-
Low cost per tonne
due to electric operation
Product data
- Equipment
- Sandvik CH430 cone, SA1854 four deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 200 mtph (220 stph)
- Power
- 167 kW (223 hp)
- Transport length
- 12.3 m (40.4 ft)
- Transport width
- 2.8 m (9.2 ft)
- Transport height
- 4.7 m (15.3 ft)
- Weight
- 35,150 kg (77,505 lb)
Please note all weights and dimensions are for standard units only.
Additional product information
-
UH311
Sandvik UH311 is manufactured to offer you the best solution for crushing applications. Fitted with our pioneering Sandvik CH430 Hydrocone crusher, this advanced machine is capable of large capacity operation and will prove to be an efficient reduction solution.
This unit has been designed to be extremely user-friendly, and features hydraulically adjustable settings, as well as a choice of different crushing chambers and throws to suit your specific application requirements. Featuring the new SA1854 four deck vibrating screen for increased screening accuracy and efficiency, this model is capable of producing 1- 4 products.
Also available in this range of wheeled cone crushers is Sandvik UH312, UH316, UH412 and US316.
-
Additional advantages
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
- Security+ extended warranty & service package for higher uptime and peace of mind.
Our wheeled cone units
![UH412 wheeled cone crusher](/globalassets/uh412_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627554&hmac=3e8332a4ab44683463a9f6d34ab72a75852fd34345ee9be4a2cdfe00f9bc45b4)
UH412 Cone crusher
- Equipment
- Sandvik CH440 cone, SA2164 four deck screen
- Max. feed size
- 215 mm (9 in.)
- Capacity
- Up to 300 mtph (330 stph)
![UH312 wheeled cone crusher](/globalassets/uh312_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627042&hmac=4457d69e7df845071ed0331d51d7d0dcbdd878252537d297d283afeff512c93f)
UH312 Cone crusher
- Equipment
- Sandvik CH440 cone, SA1854 four deck screen
- Max. feed size
- 215 mm (9 in.)
- Capacity
- Up to 300 mtph (330 stph)
![](/siteassets/products/mobile-crushers-and-screens/images/uh312_1600px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1695137052&hmac=90954b12a317fba9f5f815bbb8f3dd8537ffe1066956b3855b1ba498e17675f3)
UH316 Cone crusher
- Equipment
- Sandvik CH430 cone, SA1853 triple deck screen
- Max. feed size
- 185 mm (7 in.)
- Capacity
- Up to 250 mtph
![US316 cone crusher](/globalassets/us316_1920px.jpg?width=768&height=440&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1692627370&hmac=43e046187ed97336c832ba82d6758c98599e02a7be29b02182813961428da467)
US316 Cone crusher
- Equipment
- Sandvik CS430 cone, SA1853 triple deck screen
- Max. feed size
- 360 mm (14 in.)
- Capacity
- Up to 325 mtph (358 stph)
