Tracked cone crushers
QH443E Cone crusher
- Equipment
- Sandvik CH440 cone
- Max. feed size
- 250 mm (10 in.)
- Capacity
- 388 mtph (435 stph)

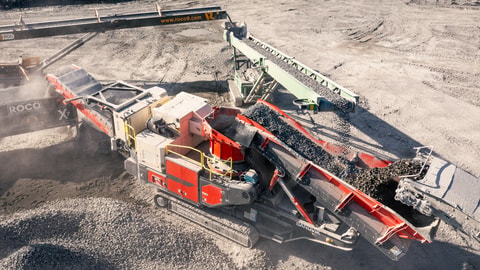

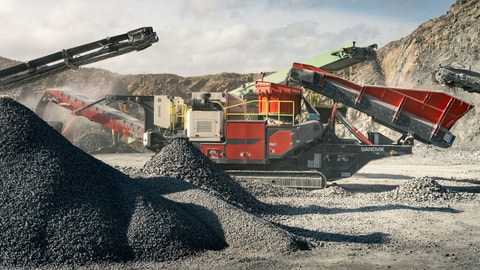

The QH443E is Sandvik’s flagship Q-Range electric-driven cone plant, marking the next step in Sandvik’s sustainability journey.
Features
-
Heavy duty rigid feed hopper and conveyor
that’s electrically driven, improving overall efficiency and reliability
-
Market leading Sandvik CH440 Hydrocone
allows for fine tuning to create optimal material shape, capacity and generate more sellable product
-
Improved system control
with direct feedback to the drive motor for increased throughput and maintenance
-
Choice of chambers, throws and settings
to optimize crusher for a wide range of applications
-
Reliability and minimal maintenance
All operation related components are electrically driven
-
Flexibility to choose your preferred energy source
Can be powered via external electrical power supply or by onboard diesel genset
Product data
- Equipment
- Sandvik CH440 cone
- Max. feed size
- 250 mm (10 in.)
- Capacity
- 388 mtph (435 stph)
- Engine
- 340-375 kW (456-502 hp)*
- Transport length
- 17.2 m (56.5 ft)
- Transport width
- 3.0 m (9.8 ft)
- Transport height
- 3.8 m (12.5 ft)
- Weight
- 51,000 kg (112,436 lb)
Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
Former Names: Extec X44, QH440 Mobile cone crusher.
Additional product information
-
QH443E

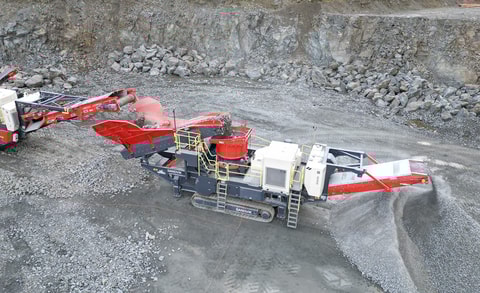

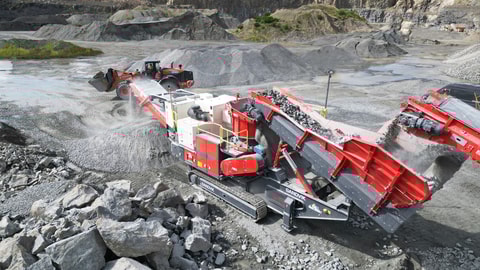

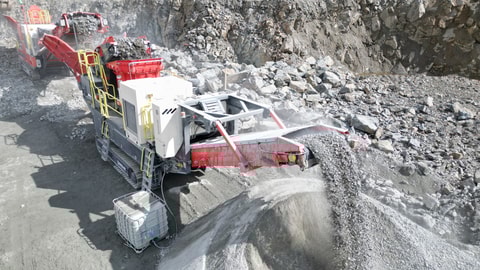

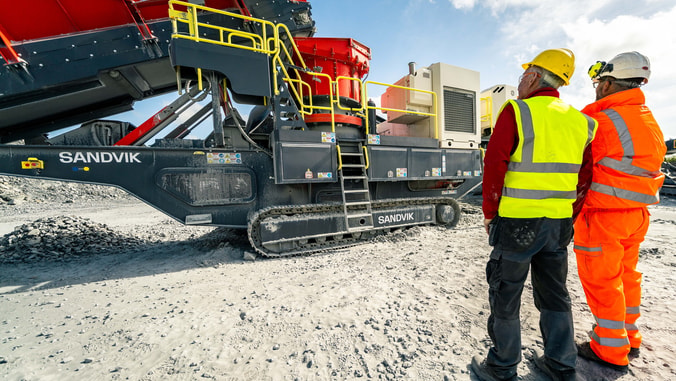

The QH443E features an updated tracked platform with a diesel/electric generator-based drivetrain, Optik™ automation system, My Fleet remote monitoring, and the renowned Sandvik CH440 Hydrocone crusher.
This advanced cone crusher is known for its versatility and ease of setting adjustment through the Hydroset CSS regulation and protection system, which optimizes production and keeps track of liner wear through the CLP, Constant Liner Performance technology. With a choice of several chambers, throws and settings for a wide range of applications, this enables you to fine tune your specification and improve capacity.
Combining electric drive technology with tracked mobility on a single platform, the QH443E is designed with safety, sustainability, and total cost of ownership in mind. This unit is ideal for secondary or tertiary crushing in aggregate production, quarries, and mines.
It features an onboard genset, an electrically driven crusher, feeder, discharge conveyor, and auxiliaries. This setup allows the QH443E to operate either by connecting to an external electricity supply or via the onboard genset using HVO or diesel.
Using an external supply or grid connection provides further advantages, including significantly lower running costs, extended drivetrain service intervals, reduced refueling time, minimal onsite emissions, and lower noise levels.
Additionally, the alternator is sized accordingly so that a downstream screening plant could be operated from the plant’s onboard genset, simplifying servicing and maintenance an improving overall fuel consumption.
Other models within this range of cone crushers include Sandvik QH332, QH441 and QS332.
Our tracked cone crushers
QS332 Cone crusher
- Equipment
- Sandvik CS430 cone
- Max. feed size
- 400 mm (16 in.)
- Capacity
- 344 mtph (379 stph)

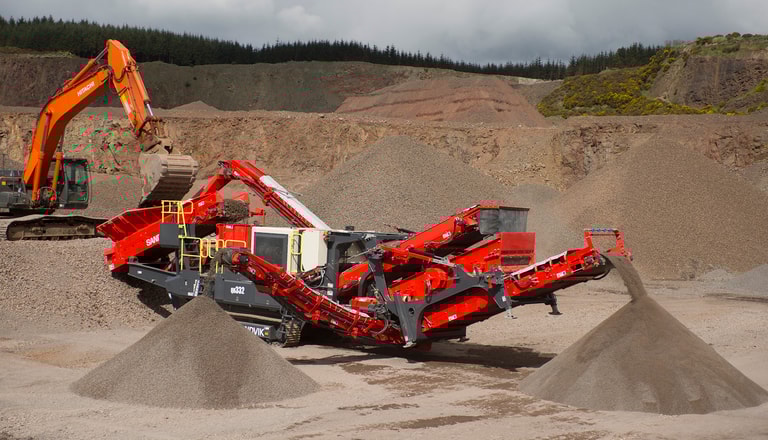

QH332 Cone crusher
- Equipment
- Sandvik CH430 cone
- Max. feed size
- 214 mm (8 in.)
- Capacity
- 220 mtph (242 stph)
US440i Cone crusher
- Equipment
- Sandvik CS440 cone
- Max. feed size
- 500 mm (20 in.)
- Capacity
- 344 mtph (379 stph)

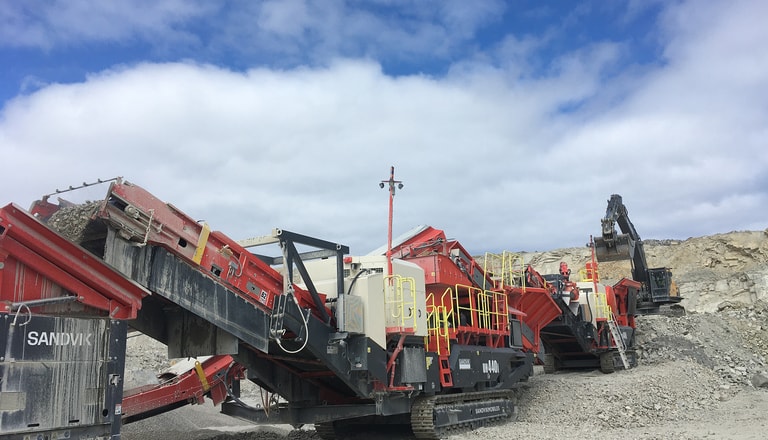

UH440i Cone crusher
- Equipment
- Sandvik CH440 cone
- Max. feed size
- 250 mm (10 in.)
- Capacity
- 400 mtph (440 stph)

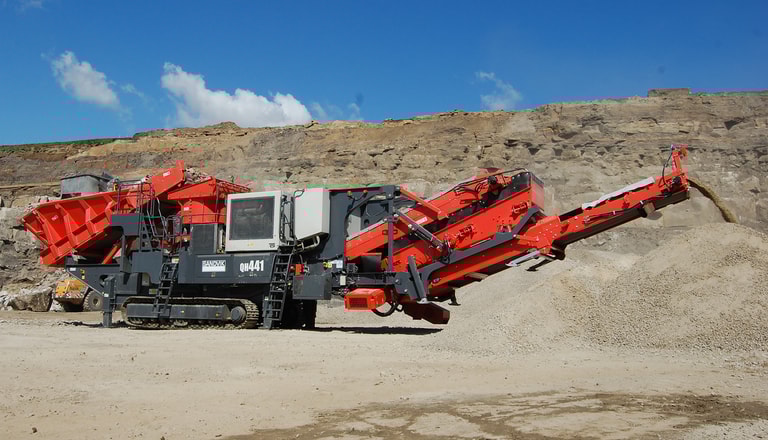

QH441 Cone crusher
