Medium range breakers

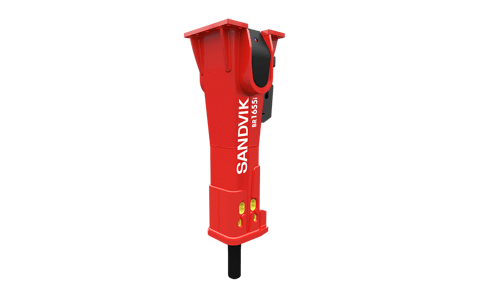

BR1655i Hydraulic breaker
- Working weight
- 1,100 kg (2,430 lb)
- Tool diameter
- 115.00 mm (4.53 in)
- Carrier weight, allowed range
- 12 - 20 t (26,500 - 41,100 lb)
Sandvik BR1655i incorporates a piston and tool that are perfectly matched to ensure maximum energy transfer for optimum power and breaking efficiency. The equipment is designed to operate in the most demanding conditions.
Features
-
Factory-installed RD3 remote monitoring device
for superior fleet management
-
FBE (Fixed Blow Energy)
the built-in pressure control valve maintains hydraulic pressure levels to ensure that every blow delivers the maximum power, yielding optimum productivity in all applications.
-
Easy IBP (Idle Blow Protection)
adjustment in the field ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures.
-
High pressure membrane accumulator
eliminates nitrogen leakages, ensuring constant maximum impact power – higher uptime and productivity with lower operation costs. Maintenance is easy and there’s no need for recharging in field
Product data
- Working weight
- 1,100 kg (2,430 lb)
- Impact rate (frequency)
- 540 - 920 bpm
- Operating pressure
- 135 - 145 bar (1,960 - 2,105 psi)
- Tool diameter
- 115.00 mm (4.53 in)
- Oil flow range
- 90.0 - 130.0 l/min (23.8 - 34.3 gal/min)
- Carrier weight, allowed range
- 12 - 20 t (26,500 - 41,100 lb)
Additional product information
-
BR1655i
Sandvik BR1655i hydraulic breaker is designed to get into places where other breakers of its size can’t. It features a slim, robust housing made entirely of wear-resistant steel and a replaceable bottom plate.
The BR1655i has constant high productivity and is extremely reliable with low operating costs. Installation has been designed to be easy and safe for the operator, while maintenance is simple, allowing you to maximize uptime. -
Additional advantages
- Twin-handed to increase stability
- Slim and lightweight design makes it easy to operate and enables access to narrow places
- Sound suppression benefits the operator and the surrounding environment
- VIDAT (Vibration Dampened) Tie rods for better reliability and longer working life
- Constant high productivity with low operating costs
- Ramlube I (optional)
- Ramlube II automatic tool greasing system (optional)
- Sandvik’s patented Ramvalve detects overflow, prevents damage from system overload and protects against premature failure.
