Extension carriages

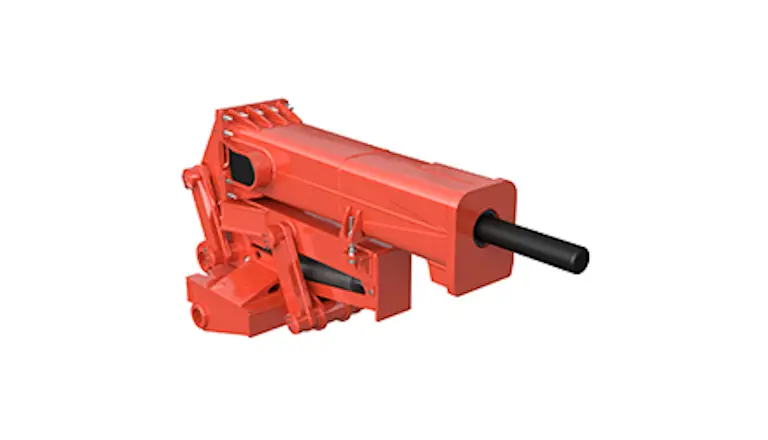

BF160 Extension carriage
- Weight
- 1,450 kg (3,200 lb)
- Feed stroke
- 600.0 mm (23.6 in)
Extension carriages are specially designed for mobile underground grizzly applications. One unit and operator can efficiently work at several grizzlies, which improves flexibility and equipment utilization. A Mobile breaker system can also be used to clear draw point blockages.
Features
-
Heavy-duty cylinders
-
Heat treated conical pins
Product data
- Weight
- 1,450 kg (3,200 lb)
- Feed stroke
- 600.0 mm (23.6 in)
Additional product information

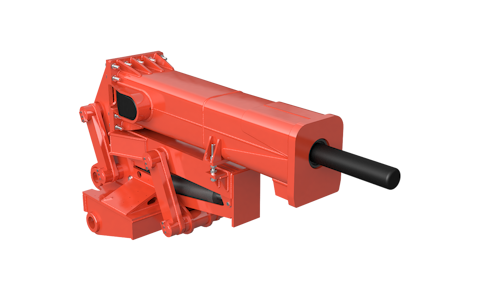

BF160
The 1,450 kg Sandvik BF160 Extension carriage with a feed stroke of 600 mm can easily be installed on various carriers and can be used with, e.g., a loader as a mobile breaker. The feeder is typically installed with a bracket having the same mounting pattern as the bucket. Utilizing the same loader for breaking and loading is therefore possible.
Our extension carriages
BF180 Extension carriage
- Weight
- 2,900 kg (6,400 lb)
- Feed stroke
- 800.0 mm (31.5 in)
