Small range breaker booms
BB550 Breaker boom
- Weight
- 2,700 kg (5,940 lb)
- Nominal horizontal reach
- 5.8 m (19.0 ft)
- Swing
- 170 °

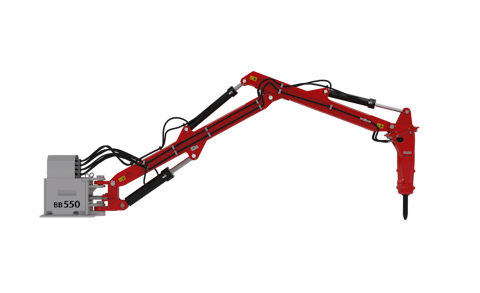

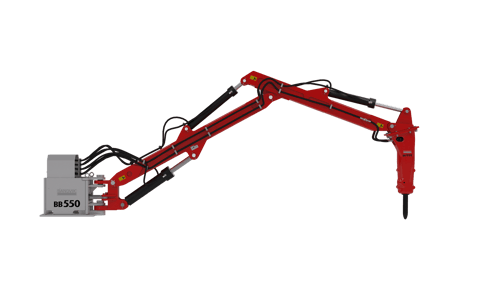

Sandvik BB550 is a multi-purpose breaker boom typically used in quarries, next to a stationary crushing plant's primary crusher to clear blockages and bridging.
Features
-
Compact design
with easily built foundation
-
Multi-purpose boom
suitable for limited spaces
-
170° swing
for optimal reach
-
Heat-treated conical pins
for extended service life
- Weight
- 2,700 kg (5,940 lb)
- Input power
- 30.0 kW (40.0 hp)
- Maximum reach
- 7.3 m (23.9 ft)
- Nominal horizontal reach
- 5.8 m (19.0 ft)
- Nominal vertical reach
- 5.2 m (17.1 ft)
- Swing
- 170 °
- Base dimensions
- 0.96 x 0.81 m (3.15 x 2.66 ft) m
Recommended breaker types BR777i Heavy Duty Small; BR999i Heavy Duty Small; BR1322i; BR1533i; BR1655i
Recommended power packs HU18; HU30
Additional product information
-
BB550
The BB550 is simple to install and operate, which means you get the maximum amount of uptime. The equipment can be operated directly by the valve levers or with radio controls.
Robust and reliable BB550 provides a 7.3-meter maximum reach and 170-degree swing for optimum flexibility, even in limited spaces. -
Additional advantages
- Robust and reliable construction to ensure easy maintenance
- Sandvik's full electrification makes the boom energy efficient
-
Applications
- Jaw crushers
- Impact crushers
