Medium range breaker booms

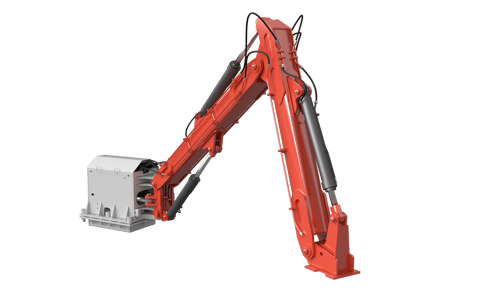

BB7500H Breaker boom

Weight: 8,545.0 kg (18,838.0 lb)
Nominal horizontal reach: 5.5 m (18.0 ft)
Swing: 170 °

Sandvik BB7500H breaker boom is specially designed for mining markets to maintain optimum throughput, increase crusher efficiency and extend the life of the equipment.

Features

Over-dimensioned design

for better durability and reliability
Modular design

allows parts to be easily replaced
Conical Expander® pins

offer a long service life
Shock-absorbing pedestal mounting

makes the equipment stable under the toughest conditions and extends the foundation lifetime

Product data

Weight: 8,545.0 kg (18,838.0 lb)
Input power: 55 kW (74 hp)
Maximum reach: 8.000 m (26.200 ft)
Nominal horizontal reach: 5.5 m (18.0 ft)
Nominal vertical reach: 5.1 m (16.7 ft)
Swing: 170 °
Base dimensions: 1.52 x 1.22 m (4.98 x 4.00 ft)

Recommended breaker types BR2155i; BR2166i; BR3288i
Recommended power packs HU37; HU45; HU55

Additional product information

BB7500H

Easy maintenance and reliability of the BB7500H ensure you get the maximum uptime. The multi-fit pedestal design makes replacing existing, worn-out boom systems more convenient. The number of different parts is cut to a minimum by, e.g., fitting the same cylinders for all boom functions.
Durable and productive Sandvik BB7500H breaker boom provides a 8-meter maximum reach and 170-degree swing. Proven design combined with over dimensioning makes the BB7500H breaker boom a convenient and safe choice.
Additional advantages
- Sandvik full electrification makes the boom energy efficient
Applications
- Grizzlies
