Tracked scalpers
QE141 Scalper
- Equipment
- 3.7 x 2.4 m hopper
- Capacity
- 400 mtph (441 stph )
Sandvik QE141 mobile scalper is an extremely versatile and reliable compact scalping, screening and stockpiling machine designed for optimum output and efficiency, whilst prioritizing simplicity for the user.
Features
-
Maximum productivity
assured through independent feeder and discharge conveyor
-
Ultimate in material handling
-
Rapid deployment
with remote tracks and zero set-up time means you can maximize your output quickly and efficiently
-
Radio remote vibrating grid tipping
enables continuous production
-
Reduced fuel consumption
through optimized hydraulic system and reduced engine RPM
Product data
- Equipment
- 3.7 x 2.4 m hopper
- Capacity
- 400 mtph (441 stph )
- Engine
- C2.8 / C3.4 55 kW (74 hp)*
- Transport length
- 8.7 m (28.6 ft)
- Transport width
- 2.7 m (8.1 ft)
- Transport height
- 3.2 m (10.4 ft)
- Weight
- 20,235 kg (44,808 lb )
* Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
Former Names: Extec Robotrac, QE140.
Additional product information
-
QE141
Sandvik QE141 is purpose built to handle the biggest of infeed material, and comes equipped with a heavy duty double deck vibrating grid. It can also be used for scalping and screening a wide range of materials, and you can put it to work before or after a crusher.
This unit is the perfect multipurpose machine for your site, and puts the user first with full radio remote control capability and easy to change meshes. These features also improve operator safety, and allows easy servicing to ensure your machine benefits from maximum uptime.
Other models within this range include Sandvik QE241, QE342 and QE442.
Our tracked scalpers
QE342 Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 4.7 x 1.45 m (16 x 5 ft)
- Capacity
- 500 mtph (551 stph )

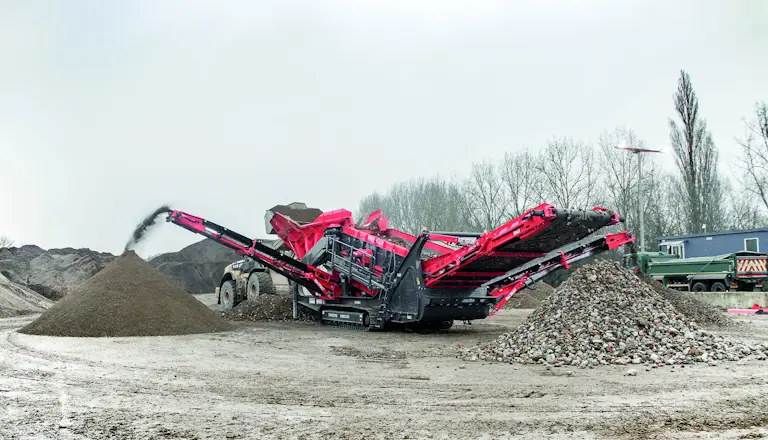

QE442 Free Flow scalper
- Equipment
- Sandvik heavy duty 2 deck Free Flow screen
- Screen size
- 5.5 x 1.75 m (18 x 6 ft)
- Capacity
- 900 mtph (992 stph )

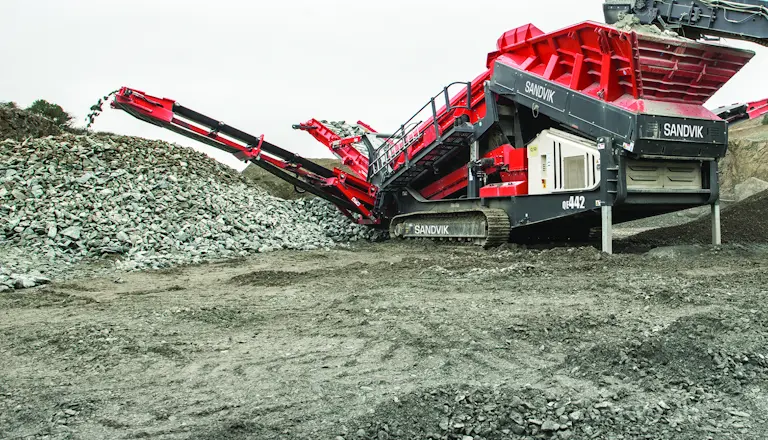

QE442 Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 5.5 x 1.75 m (18 x 6 ft)
- Capacity
- 900 mtph (992 stph )
QE241 Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 3.35 x 1.24 (11 x 4 ft)
- Capacity
- 350 mtph (386 stph )
