Tracked scalpers
QE442 Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 5.5 x 1.75 m (18 x 6 ft)
- Capacity
- 900 mtph (992 stph )

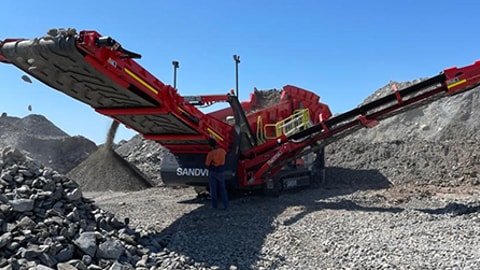

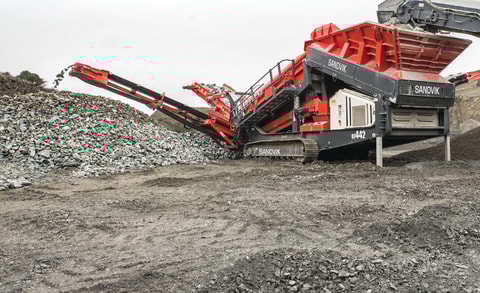

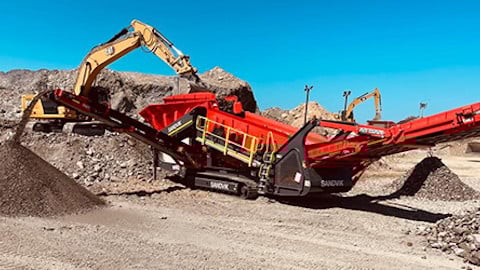

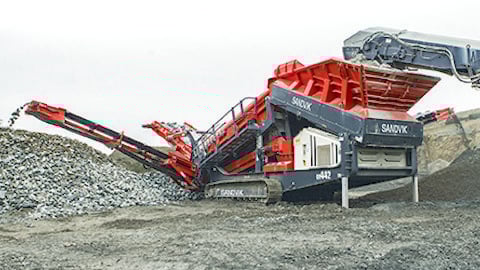

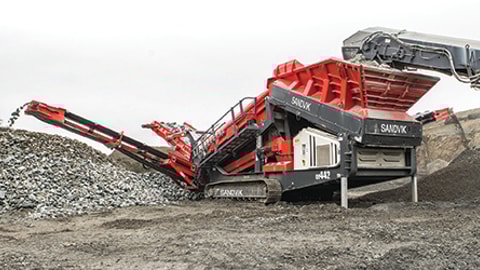

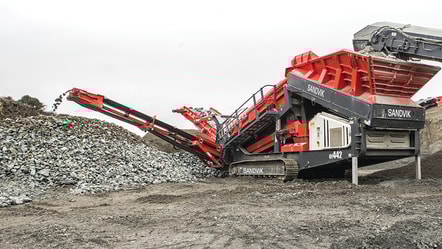

Sandvik QE442 is the largest in the heavy-duty range of tracked mobile scalpers. Designed for the large-scale aggregate producer, it is reliable, versatile and boasts high throughput, with the fines conveyor alone able to handle up to 900 TPH.
Features
-
Heavy duty screen box
with high speed and aggressive throw for optimum throughput
-
Reduced cost of ownership
through extended hydraulic fluid change intervals from 2000hrs to 4000hrs
-
Latest generation fuel efficient engines
provide maximum performance & cost efficiency
-
User-friendly PLC control system
with sequential start-stop for speed and ease of operation
-
Operator safety ensured
with 2 speed radio tracking and feeder control as standard
Product data
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 5.5 x 1.75 m (18 x 6 ft)
- Capacity
- 900 mtph (992 stph )
- Engine
- C4.4 110 kW (147 hp)*
- Transport length
- 16.3 m (53.7 ft)
- Transport width
- 3.2 m (10.6 ft)
- Transport height
- 3.5 m (11.6 ft)
- Weight
- 37,720 kg (82,056 lb )
* Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
Additional product information
-
QE442
Sandvik QE442 incorporates many product refinements for improved plant durability, efficiency, quicker set-up and easier service access, whilst also maintaining the class leading features of its predecessor, the Sandvik QE441. These benefits include a redesigned screen box for improved durability, reduced cost of ownership and “My Fleet” remote monitoring system is fitted as standard.
Sandvik QE442 can accept high volumes of infeed material and is ideal for your large quarrying, mining or recycling applications. It can also work as a stand-alone unit feeding a primary crusher.
This solution offers the user-friendly features of the 2 series screens including an electrical control system which improves both operational effectiveness and machine safety.
With a machine this powerful, operator safety is vital. To ensure this, Sandvik QE442 includes 2-speed radio remote control tracking, feeder control and hydraulically folding maintenance platforms as standard.
Other models within this range include Sandvik QE141, QE241, QE342 and QE442 Free Flow.
-
Additional advantages
- Spacious power pack with improved service access, hydraulics and lighting
- Compatible for 2-way or 3-way split configurations
- Hybrid “e” drive option with electric plug-in lets you choose your most economical and efficient energy source
- My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
- Security+ extended warranty & service package for higher uptime and peace of mind.
Case stories
Sandvik launch next generation 2 Series QE442 Scalper

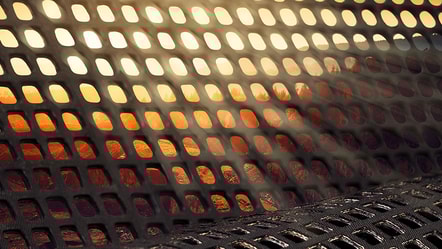

Sandvik Mobiles introduce new WX-Range of screen media combining durability & high accuracy
