Tracked jaw crushers

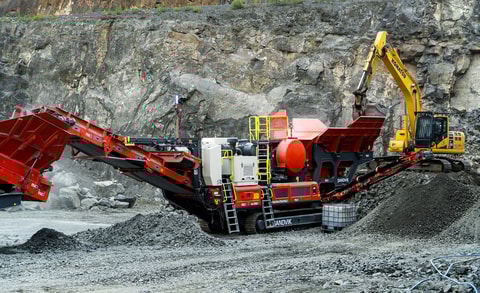

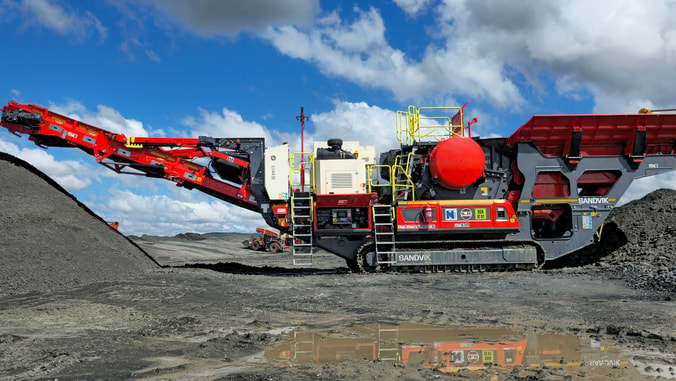

UJ443E Jaw crusher

Equipment
Sandvik CJ412 jaw crusher
Feed opening
1200 x 830 mm (47 x 33 in.)
Max. feed size
750 mm (30 in.)
Capacity
Up to 700 mtph (770 stph)

Sandvik Mobile Crushers and Screens continues to drive the sustainability shift in the crushing and screening industry with our new fully electric, UJ443E heavy tracked jaw crusher.

Features

Product data

Equipment
Sandvik CJ412 jaw crusher
Feed opening
1200 x 830 mm (47 x 33 in.)
Max. feed size
750 mm (30 in.)
Capacity
Up to 700 mtph (770 stph)
Power
Diesel generator 400 V / 230 V 24 V 50 Hz
Transport length excl NF conveyor
16.8 m (55.6 ft)
Transport length incl NF conveyor
17.2 m (56.6 ft)
Transport width
3.0 m (9.1 ft)
Transport height
3.9 m (12.1 ft)
Weight VGF and US (excl NF conveyor)
69,500 kg (153,221 lb)
Weight VGF and US (incl NF conveyor)
71,000 kg (156,528 lb)

Can be split in two parts for road transport: Plant less crusher (38,645 kg / 85,197 lbs excluding NF Conveyor) or (40,145 kg / 88,504 lbs including NF Conveyor) + (Base crusher 30,855 kg / 68,023 lbs)

  • UJ443E

    Using our decades of experience and knowledge in building robust, sustainable, powerful, and fully electric crushing and screening units, the UJ443E is the newest innovation in Sandvik’s sustainable heavy range of units.


    The UJ443E heavy jaw crusher has been designed with increased focus on productivity, sustainability, and durability.


    The UJ443E allows you to choose your preferred energy source, either connected to an external electricity supply or via the onboard genset using HVO or diesel.


    Operating whilst connected can bring several advantages including, significantly lowering running costs, extending drivetrain service intervals, reducing time spent refuelling, reducing onsite emissions and lower noise levels.


    With a host of new innovative features on the UJ443E, we break boundaries, so you can crush rock.

  • Additional advantages

    • Feed hopper with patent pending folding and locking mechanism
    • Two rubber lined feeder options available, a vibrating grizzly for clean rock or a vibrating grizzly with under-screen for rock containing fines
    • A larger bypass chute and optional natural fines conveyor
    • Optik™ automation system
    • Crusher unblock software
    • Onboard low emission diesel electric genset
