Tracked jaw crushers

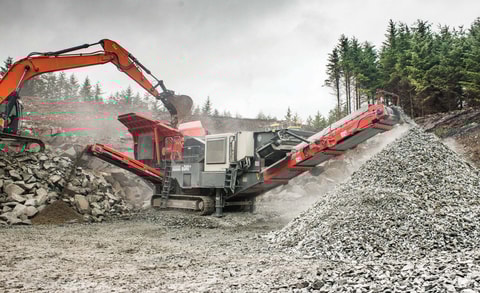

QJ341+ Jaw crusher

Equipment: Sandvik C12 jaw crusher
Feed opening: 1,200 x 750 mm (47 x 29 in.)
Max. feed size: 650 mm (26 in.)
Capacity: 450 mtph (496 stph)

Sandvik QJ341+ is an improved addition to our bestselling QJ341. This model comes with the added benefit of a double deck pre-screen as standard, while maintaining all of the features which made the original so popular.

Features

Double deck pre-screen

for better efficiency and productivity
Telescopic natural fines conveyor

for greater stockpiling capabilities
Jaw level sensor

to control the feed rate with minimal intervention
Three position by-pass chute

for faster fines transfer and greater flexibility of material distribution
Hydraulic raise and lower facility

on the main conveyor enables simple, consistent optimization of your processes

Product data

Mobiles tracked brochure

qj341+-specification-sheet-english.pdf

Equipment: Sandvik C12 jaw crusher
Feed opening: 1,200 x 750 mm (47 x 29 in.)
Max. feed size: 650 mm (26 in.)
Capacity: 450 mtph (496 stph)
Engine: C9 280 kW (375 hp)
Transport length: 14.7 m (48.3 ft)
Transport width: 2.8 m (9.2 ft)
Transport height: 3.8 m (12.5 ft)
Weight: 53,000 kg (116,845 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

Additional product information

QJ341+

The pre-screen will enable the removal of fines to increase your throughput resulting in greater efficiency, less wear on the crusher and ultimately higher productivity. This will be particularly effective in applications where you have a high proportion of fines in the feed material.

As with the standard model, Sandvik QJ341+ comes with features purposefully designed to provide the user with total control, such as the Sandvik PLC control system and control screen. With any equipment operator safety is vital, so this machine includes a self locking hopper, and can be set up from ground level.

Other models within the QJ mobile jaw crusher range of jaws include Sandvik QJ241 and QJ341.
Additional advantages
- Fitted with Optitooth™ jaw plates for extended life, increased throughput and reduced fuel consumption
- My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
- Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

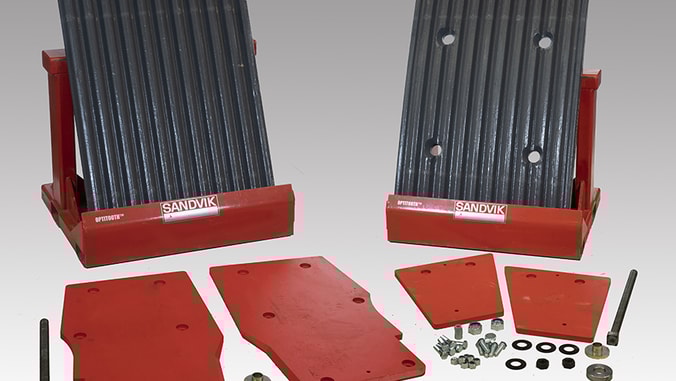

Increased productivity & longer wear life with Sandvik Optitooth™ offering

Sandvik Mobiles have created a number of complementary ready-to-order maintenance kits which include Optitooth™ jaw plates and our NEW Optitooth™ side plates for the Sandvik QJ241, QJ341 & QJ341+ jaw crushers.
