Wheeled cone units

US316 Cone crusher

Equipment
Sandvik CS430 cone, SA1853 triple deck screen
Max. feed size
360 mm (14 in.)
Capacity
Up to 325 mtph (358 stph)

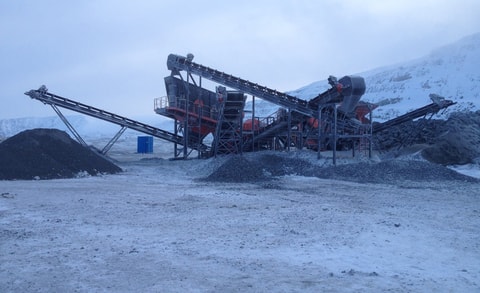

US316 cone crusher

Sandvik US316 is a compact secondary and tertiary crusher fully assembled on a single trailer frame. This equipment is designed to provide complete versatility with an efficient SA1853 triple deck screen and a highly productive Hydrocone crusher.

Features

Product data

Equipment
Sandvik CS430 cone, SA1853 triple deck screen
Max. feed size
360 mm (14 in.)
Capacity
Up to 325 mtph (358 stph)
Power
160 kW (213 hp)
Transport length
12.3 m (40.4 ft)
Transport width
2.8 m (9.2 ft)
Transport height
5.0 m (16.5 ft)
Weight
38,100 kg (83,996 lb)

These units are non CE-certified.
Please note all weights and dimensions are for standard units only.

Additional product information

  • US316

    Sandvik "S" type gyratory crusher is an advanced design with a large feed size and capable of achieving high production capacities. It comes equipped with a Hydroset CSS regulation system that will automatically optimize production and keep track of liner wear. This means that your uptime is always at a maximum, enabling optimum levels of production.

    Sandvik US316 also benefits from user friendly features such as hydraulically adjustable settings, and a choice of different crushing chambers and throws. This enables fine tuning to match your required specification and maximum output.

    Other models within the wheeled cone unit range include Sandvik UH311UH316 and UH412.

  • Additional advantages

    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
    • Security+  extended warranty & service package for higher uptime and peace of mind.
